SPEEDAIRE

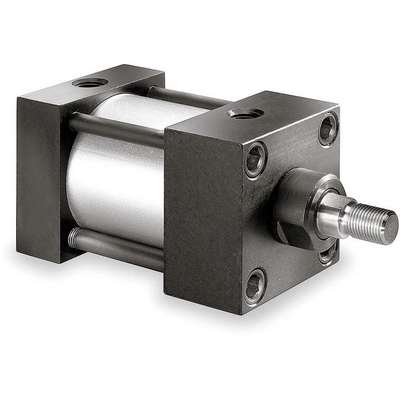

1-1/2" Air Cylinder Bore Dia. with 2" Stroke , Side Tapped/Sleeve Nut Mounted Air Cylinder

Hover over image to magnify
Air Cylinder,2 In. Stroke,7.
Air Cylinder,2 In. Stroke,7.

#918907-4 | Pkg Qty: 1

|
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Air Consumption
scfm
Dimension Sn
2-1/4 in.
Air Cylinder Mount
Side Tapped/Sleeve Nut
Dimension Tn
0.625 in.
Air Cylinder Type
NFPA
Dimension Vf
0.625 in.
Brand
SPEEDAIRE
Dimension Xt
1.938 in.
Cushion Type
None
Dimension Y
1.875 in.
Cylinder Action
Double Acting
Dimension Zb
4.625 in.
Cylinder Ports
1/4 NPT
End Cap Material
Steel
Cylinder Type
NFPA
Finish
Black
Dimension A
3/4 in.
Item
Air Cylinder
Dimension B
1.124 in.
Maximum Load
441 lb.
Dimension C
0.375 in.
Maximum Pressure
250 psi
Dimension Db
1/4 in.-28
Mfr. Part Number
4MU21
Dimension E
2 in.
Mount
Side Tapped/Sleeve Nut
Dimension Ee
1/4 NPT
Mounting Style
Side Tapped/Sleeve Nut
Dimension G
1-1/2 in.
Overall Length
7-3/8 in.
Dimension J
1 in.
Package Quantity
1
Dimension Kk
1/2 in.-20
Port Size
1/4 in. NPT
Dimension Lb
3-5/8
Shipping Weight
4.3 lb.
Dimension Mm
5/8
Stroke
2 in.
Dimension Nt
1/4 in.-20
Tube Material
Aluminum
Dimension P
2.34 in.
Type
Double Acting
Dimension Re
1.428 in.
General
Action Type
Double Acting
Ignition Type/Ignition Power Source
1.938"
Air Cylinder Bore Dia.
1 1/2 in
Piston Rod
Chrome Plated Steel
Air Cylinder Product Group
Air Cylinder
Piston Rod Material
Chrome Plated Steel
Bore Dia.
1 1/2 in
Rod Dia.
0.625 in
Diameter X Depth
1.428"
Rod Thread Length
0.75 in
End Caps
Steel
Rod Thread Size
1/2"-20
Features
Adjustable Air Cushion
Single Acting/Double Acting
Double Acting
Flapper Width
2-1/4"
Standards
JIC, NFPA
Furnace Type
0.625"
Tie Rod Material
Steel
Heating Capacity Output
0.625"
Tie Rods
Steel

Product Description

This noncushioned cylinder offers a full range of NFPA interchangeable mounting configurations.
