SPENCE ENGINEERING

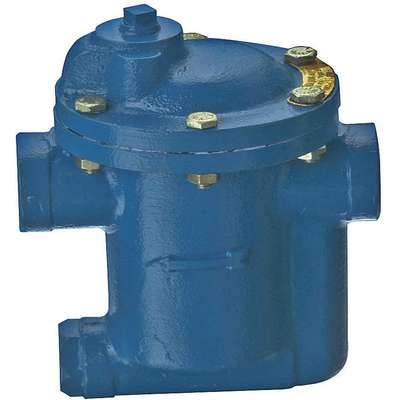

Spence Engineering Steam Trap, 1" (F)NPT Connections, 5-1/16" End to End Length, Condensate Capacity Lbs/Hr 1060
Hover over image to magnify
#918884-3 | Pkg Qty: 1
$329.77 pkg | $329.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SPENCE ENGINEERING
Maximum Operating PSI
15 psi
Item
Steam Trap
Mfr. Part Number
81S-C1E9
Length
5-1/16 in.
Package Quantity
1
Material
Cast Iron
Shipping Weight
8 lb.
General
(F)NPT Connections
1 in
End to End Length
5 1/16 in
Condensate Capacity Lbs/Hr
1,060 lb/hr
Includes
Integral Strainer
Disc Material
Stainless Steel
Max. Temp.
450 Degrees F
Downstream PSI Range
0 to 15 psi
Pipe Configuration
Straight
Product Description
Cast-Iron Body
- Max. temperature: 450°F
- General-purpose traps.
- Dura-Flo Inverted Bucket Steam Traps with Integral Strainer
- Straight configuration
- Rugged and have a stainless steel seat, valve, and bucket. Resist dirt and scale; repairable in-line. For consistent steam load applications. NPT connections.
Documents
Item Barcode
Steam Trap,450F,Cast Iron,0 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4DXG6 | Steam Trap, 450F,Cast |
 | UNSPSC CODES | 40142503 | |
 | VMRS (ATA) CODES | 053-006-009 | Steam Trap, 450F,Cast |
