MITUTOYO

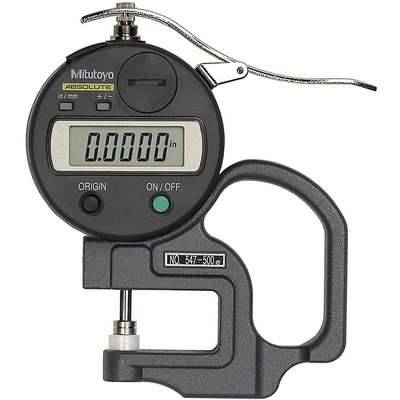

Mitutoyo Digital Thickness Gage, 0 to .470 Range (In.), 0.00050 Resolution (In.), 30mm Throat Depth

Hover over image to magnify
Digimatic Thickness Gage,0 To
PI_Asset_950934
Digimatic Thickness Gage,0 To
PI_Asset_950934

#918875-9 | Pkg Qty: 1

$346.23 pkg | $346.23 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accuracy
±.001
Leaves

Brand
MITUTOYO
Locking Device

Construction
Grip Handle, Thumb Trigger And Spring Loaded Spindle
Mfr. Part Number
547-500S
Contact Type
Flat Anvil
Package Quantity
1
Flat Contact Diameter
0.248 in.
Shipping Weight
1.1 lb.
Item
Digimatic Thickness Gauge
Throat Depth
30 mm
General
Anvil Diameter
0.248 in
Includes Battery
Yes
Anvil Shape
Flat
Long Form Calibration Certificate
No
Battery Size
Silver Oxide Cell SR44
Maximum Measurement - Inch
0.4700 in
Compatible SPC Cable
Mfr. No. 905338
Maximum Measurement - mm
12 mm
Contact Material
Ceramic
Maximum Measuring Force
1.5 N
Data Output Type
Cable
Minimum Measurement - Inch
0.0005 in
Features
Incorporates ID-S Series Digimatic Indicator To Provide Error Free LCD Readings
Minimum Measurement - mm
0.01 mm
Includes
SPC Cable
Range - Inch
0 to .470

Product Description

These high-resolution digital thickness gauges are used to measure the thickness of materials like sheet metal or paper. The material is held between contact points on the jaws of the gauge and the LCD will show the thickness of the material. They have high-resolution decimal inch and metric readings and are commonly used in machining, engineering, and metal fabrication applications.

Item Barcode
9188759
Digimatic Thickness Gage,0 To
 NameItemDescription
Grainger DropshipGrainger Dropship4CGW4Digimatic Thickness
UNSPSC CODESUNSPSC CODES41111623
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Digimatic Thickness
