WIDIA GTD

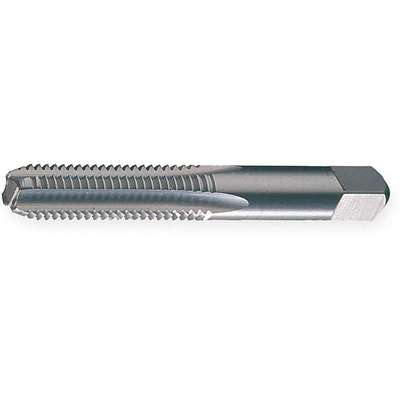

5/16"-18, Tap, Right Hand, Bottoming, 4 Flutes, High Speed Steel, Uncoated Tap Finish

Hover over image to magnify
Hand Tap,Bottom,5/16-18,
Hand Tap,Bottom,5/16-18,

#918865-6 | Pkg Qty: 1

$10.89 pkg | $10.89 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WIDIA GTD
Shank Diameter
5/16 in.
Cutting Direction
Right
Shank Length
1-9/16 in. in.
Cutting Direction
Right Hand
Shipping Weight
.01 lb.
Dimension Type
Decimal Inch
Size
5/16 in.
Flutes
4
Spiral Direction
Neutral
Grade
WU41EG
Square Size
0.238 in.
Insert Material
High Speed Steel
Subgroup | Tap
Straight Flute
Item
Straight Flute Tap
Tap Chamfer
Bottoming
List Number
5303
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Mfr. Part Number
14094
Tap Material
High Speed Steel
Number of Flutes
4
Tap Size
5/16 in.
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
2-3/32 in.
Tap Thread Size
5/16 in.-18
Pack Quantity
1
Tap Thread Type
UNC
Pitch
18
Thread Direction
Right Hand
Pitch Diameter Limits
H3
Thread Length
1-1/8 in.
Primary Material Application
Aluminum, Brass, Bronze, Copper
Thread Type
UNC
Series
5303/2303
Type
Bottoming
General
55% Thread Drill Size
I
Shank Type - Machining
Straight
65% Thread Drill Size
17/64 in
Standards
ANSI, Unified and American National Threads
75% Thread Drill Size
F
Tap Grouping
Individual
Application
For Tapping Under Power Through Shallow or Blind Holes
Tap Length Standard
ANSI 302
Coolant Fed
Non-Coolant Through
Tap Shank Standard
ANSI 302
Extended Neck
No
Thread Limit
H3
Measurement System
Fractional Inch
Thread Limit / Class of Fit
H3
Primary Material Application ISO Code
N
Thread Standard
UNC
Shank Dia.
5/16 in
Threads per Inch
18

Product Description

The bright finish on these taps provides a smooth, polished surface.
