HOSE MASTER

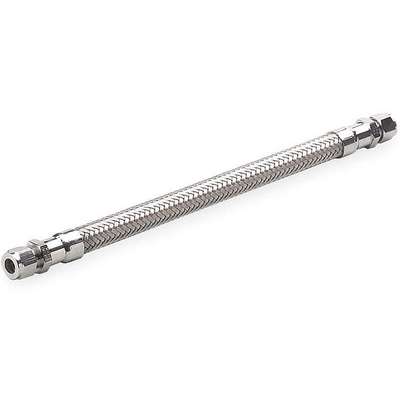

Flexible Metal Hose Assembly: 1/4 in Hose Inside Dia., 5 in Dynamic Min. Bend Radius (In.)

Hover over image to magnify
Instrumentation Grade Hose
Instrumentation Grade Hose

#918673-3 | Pkg Qty: 1

$256.46 pkg | $256.46 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Braid Material
Stainless Steel
Item
Flexible Instrumentation Metal Hose
Brand
HOSE MASTER
Length
12 in.
Diameter
1/4 in.
Mfr. Part Number
G025TXTG120
Fitting Type
316 Stainless Steel Precision Tube Compression Fitting
Package Quantity
1
Hose Material
Stainless Steel
Shipping Weight
.3 lb.
General
Compatible Chemicals
Brake Fluid, Deionized Water, Fresh Water, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Motor Oil, Naphtha
Hose Fitting B Type
F Compression
Fitting Material
316 Stainless Steel x 316 Stainless Steel
Hose Fittings
316 Stainless Steel 1/4 in F Compression x 316 Stainless Steel 1/4 in F Compression
For Media Type
Brake Fluid, Hydraulic Fluid, Motor Oil, Naphtha, Water
Hose Tube Material
316 Stainless Steel
Hose Cover Material
304 Stainless Steel
Max. Working Pressure @ 70 F
4,600 psi
Hose Fitting A Material
316 Stainless Steel
Not Recommended Chemicals
Sodium Hypochlorite/Bleach (to 20%)
Hose Fitting A Type
F Compression
Temp. Range
-325 Degrees to 1200 Degrees F
Hose Fitting B Material
316 Stainless Steel

Product Description

These corrugated metal hoses have a 316 stainless-steel inner hose with a 304 stainless-steel braided cover (or outer hose). 316 stainless steel provides excellent corrosion resistance and is ideal for industrial chemical-processing applications. 304 stainless steel can be sanitized. It can withstand corrosion from most oxidizing acids but is susceptible to corrosion from chloride solutions or from high-saline environments like coastal regions.

Corrugated metal hoses (also known as jacketed hoses) are ideal for conveying products that need to be heated or cooled during transfer. They are used in asphalt and hot-mix plants and the food, beverage, cosmetic, and pharmaceutical industries. These hoses consist of a flexible inner metal hose enclosed in a flexible metal outer hose (or jacket). Fittings on the ends of these hoses prevent any material that is being conveyed through the inner or outer hose from moving into the other hose. This allows the inner and outer hoses to be used to convey different materials. For example, steam or hot oils can be circulated through the outer hose to keep viscous material in the inner hose warm and fluid.

Item Barcode
9186733
Instrumentation Grade Hose
 NameItemDescription
Grainger DropshipGrainger Dropship1LND8Instrumentat ion Grade
UNSPSC CODESUNSPSC CODES40142005
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Instrumentat ion Grade
