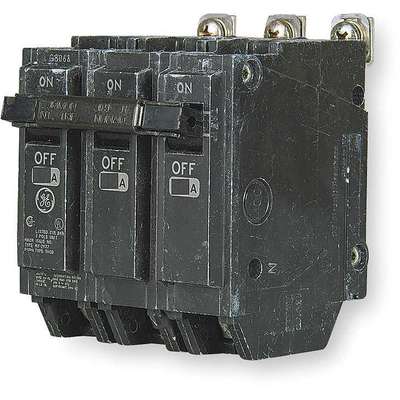

Bolt On Circuit Breaker, 70 Amps, Number of Poles: 3, 240VAC AC Voltage Rating

Zoom Icon
Secondary Item Image
3HXX2_SS01_R01_C23

#918643-9 | Pkg Qty: 1

$327.24 pkg | $327.24 ea
Item Number 918643-9
Scanner Description Bolt On Circuit Breaker,70A,3
Inventory Status Drop Ship Item
Weight 1.1 lb
Brand GENERAL ELECTRIC

Technical Specifications

AC Voltage Rating
240VAC
Item
Bolt On Circuit Breaker
AIR @ 277VAC
Not Rated
Length
3.28 in.
AIR @ 48VDC
Not Rated
Max. AIR Rating
10 kA
Air @ 120VAC
10kA
Max. Wire Size
1/0 AWG
Air @ 125VDC
Not Rated
Max. Wire Size (AWG)
3
Air @ 240VAC
10kA
Mfg Part Number
THQB32070
Air @ 480VAC
Not Rated
Min. Wire Size
8 AWG
Air @ 600VAC
Not Rated
Min. Wire Size (AWG)
8
Air @ 65VDC
Not Rated
Number of Poles
3
Amperage (A)
70
Pack Quantity
1
Amps
70
Panelboard Mounting
Bolt-On
Brand
GENERAL ELECTRIC
Phase
3
Circuit Breaker Type
Standard
Phase Connection
Any
DC Voltage Rating
Not Rated
Series
THQB
Depth
2.38 in.
Standards
UL Listed, CSA Certified
For Use With
GE AQ Lighting Panels
Terminal Connection
Lug
Frame Size
THQ
Type
Panelboard Mount
High Amp Trip Setting
700
Voltage (V)
240VAC
Instantaneous Trip
Fixed
Width
3 in.

Product Description

THQL (Plug-In) and THQB (Bolt-On) Circuit Breakers

  • 1-pole 120VAC; 2-pole 120/240VAC; 3-pole 240VAC Screw clamp connection up to 30A; box lug connection 35A and higher
  • Bolt-on breakers are for use in 120/240V AQ lighting panels. Plug-in breakers are for use in AQL lighting panels and Power Mark Gold load centers.
