#918620-1 | Pkg Qty: 1
$5.62 pkg
| $5.62 ea
Technical Specifications
Key Specifications
Angle
90 deg.
Maximum Pressure
125 psi
Basic Fitting Material
Metal
Mfr. Part Number
22UL05
Basic Fitting Shape
Elbow
Pack Quantity
1
Body Material
Brass
Pipe Fitting Material
Brass
Brand
APPROVED SUPPLIER
Pipe Size
1/8 in.
Connection Type
FNPT x MNPT
Shipping Weight
0.06 lb.
For Use With
Low Pressure Plumbing Applications Including Air, Water, Natural Gas, and Steam
Standards
ANSI B 1.20.1, ASME B16.15, ASTM B62
Item
Street Elbow
Temperature Range (Deg. F)
-20 to 400 deg. F
General
Class/Pressure
Class 125 125 psi
Includes Pre-Applied Thread Sealant
No
Fitting Pipe Size
1/8 in x 1/8 in
Includes Seal
No
Fitting Side A Gender
Male
Low Lead Certified Standard
NSF 61; AB1953
Fitting Side A Nominal Pipe Size
1/8 in
Low Lead Compliance Level
Certified
Fitting Side A Type
NPT
Pipe Fitting Material & Finish
Brass
Fitting Side B Gender
Female
Pressure Level
Low Pressure (100-299 psi)
Fitting Side B Nominal Pipe Size
1/8 in
Threading
NPT
Fitting Side B Type
NPT

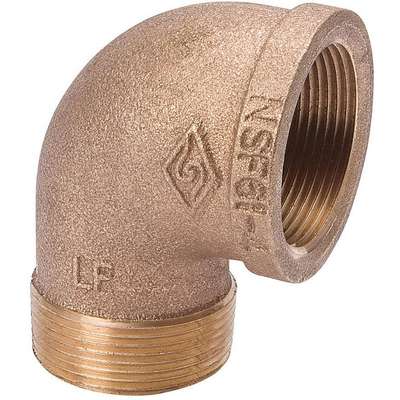

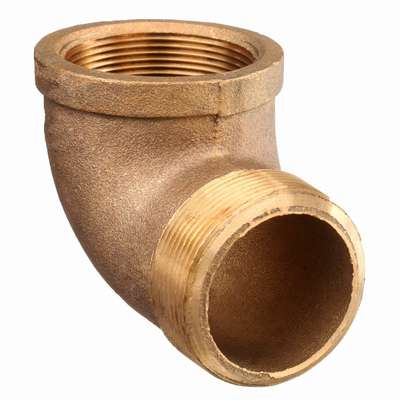

Product Description
Low-Lead Red Brass FittingsClass 125
- Max. pressure: 125 psi Temp. range: -20° to 400°F Resist corrosion from water, heat, saltwater, acids, minerals, and heavy soils. NPT connections. For use with air, water, natural gas, and steam in commercial and residential buildings. Material meets ASTM B584 standards. Dimensions for fittings meet ASME B16.15, for unions A-A-59617, and for flanges ASME B16.24. Threads meet ANSI B1.20.1 standards. NSF 61 Listed. Certified for use in potable water applications.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Street Elbow,90 Deg,1/8In,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 22UL05 | Street Elbow, 90 deg,1/8In, |
|
UNSPSC CODES | 40172801 | |
|
VMRS (ATA) CODES | 053-006-009 | Street Elbow, 90 deg,1/8In, |
