CHICAGO-LATROBE

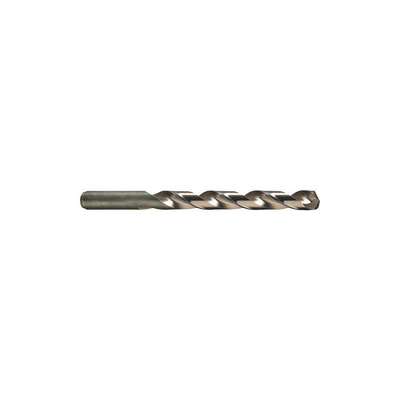

Chicago-Latrobe Jobber Length Drill Bit, Drill Bit Size 31/64", Drill Bit Point Angle 118, High Speed Steel
Hover over image to magnify
#918588-3 | Pkg Qty: 1
$15.13 pkg | $15.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CHICAGO-LATROBE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
150D
Decimal Equivalent
0.4844
Maximum Drilling Depth
1-15/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
44231
Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Bright (Uncoated)
Overall Length
5-7/8 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Angle
118 deg.
Drill Bit Size
31/64 in.
Point Type
Conventional Point
Drill Point Length
0.1455 in.
Series
150D
Finish
Bright
Shank Diameter
31/64 in.
Flute Length
4-3/8 in.
Shank Length
1-1/2 in.
Flute Type
Spiral
Shank Type
Straight
Grade
General Purpose
Shipping Weight
.15 lb.
Helix Angle
28 deg.
Spiral Direction
Right Hand
General
Application
For Non-Ferrous Materials
Finish - Machining
Bright (Uncoated)
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Depth:Dia. Ratio
4xD
Material Grade - Machining
General Purpose
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Conventional Point
Primary Material Application ISO Code
N
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Dia.
31/64 in
Drill Length Class
Jobber Length
Shank Type - Machining
Straight
Product Description
These drill bits come in standard sizes expressed in fractional inches. They have a bright finish that is not affected when the bits' cutting edges are resharpened, and they have spiral flutes that evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
