MASTER LOCK

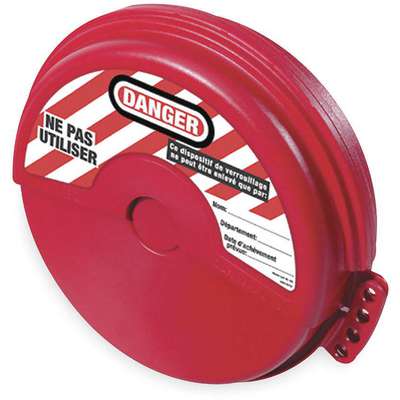

Master Lock Gate Valve Lockout: Fits 4 in to 6-1/2 in Handle Size, 4 Padlocks, 8 5/8 in H, 6 in Wd

Hover over image to magnify
Gate Valve Lockout,Fits Sz 4
PI_Asset_929021
Gate Valve Lockout,Fits Sz 4
PI_Asset_929021

#918546 | Pkg Qty: 1

$40.19 pkg | $40.19 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
MASTER LOCK
Maximum Number of Padlocks
4
Color Family
Red
Maximum Shackle Diameter
5/16 in.
Diameter
2-1/3 in.
Mfr. Part Number
482
Fits Pipe Size
4 in. to 6-1/2 in.
Package Quantity
1
Height
8-5/8 in.
Shipping Weight
.65 lb.
Item
Gate Valve Lockout
Temperature Range (Deg. F)
-50 to 350 deg. F
Legend
Danger Do Not Operate
Width
6 in.
Material
Thermoplastic
General
Fits Handle Size
4 in to 6-1/2 in
Padlock Shackle Max. Dia.
5/16 in
For Use With
Gate Valves
Standards
OSHA 1910.148
Max. Shackle Dia.
5/16 in
Valve Handle Dia.
4 to 6-1/2"
Max. Valve Handle Thickness
1 3/4 in

Product Description

Featuring a 1⅞” (48mm) depth and 2½” (64mm) stem opening, this Master Lock® Rotating Gate Valve Lockout surrounds the valve-operating handle to help protect against accidental valve opening. The unique outward/inward rotating design helps offer easier installation in tight areas while the center knockout can be removed to accommodate rising step gate valves. For added safety, the lockout can hold 4 padlocks (sold separately) at one time. To help perform effectively in extreme conditions and be chemically resistant, the body is made of a tough, lightweight dielectric Zenex™ thermoplastic material. The lockout includes highly-visible permanent safety labels in English, Spanish, and French that can be written on to identify the responsible person. For convenient storage, each size nests into the next larger size to help save space. Suitable for locking out 4” (102mm) to 6½” (165mm) diameter valve handles in confined spaces and/or as part of a comprehensive OSHA-compliant lockout/tagout safety program.
