RAYCHEM

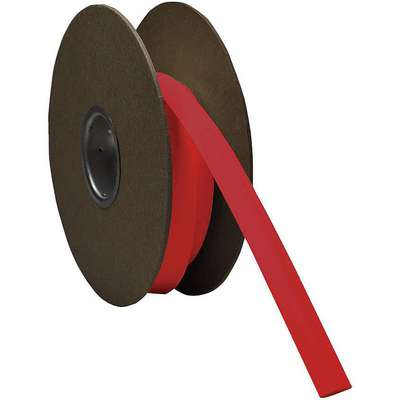

Raychem 25 ft. Thin Wall Heat Shrink Tubing, Flexible Polyolefin, Shrink Ratio 2:1
Hover over image to magnify
#918490-5 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Brand
RAYCHEM
Shipping Weight
2 lb.
Color Family
Red
Shrink Ratio
1899-12-31 02:01:00
Dielectric Strength
600 V
Shrink Temperature
203F
Flame Retardant
No
Shrink Tubing Adhesive Lined
No
Heat Shrink Tubing Shrink Ratio
2:1 Shrink Ratio
Shrink Tubing Inside Diameter Before Shrinking
0.063 in.
Inside Diameter After Shrinking
0.030 in.
Shrink Tubing Length
25 ft.
Inside Diameter Before Shrinking
0.063 in.
Shrink Tubing Material
Polyolefin
Inside Diameter Expanded Pre-Shrink
0.063 in.
Shrink Tubing Material Type
Flexible
Item
Heat Shrink Tubing
Shrink Tubing Type
Heat Shrink Tubing
Length
25 ft.
Shrink Tubing Usable Temperature Range
-67 to 275F
Material
Polyolefin
Temperature Range
-67 deg. F to 275 deg. F
Material of Construction
Polyolefin
Tube Material
Flexible Polyolefin
Maximum Voltage
600 V
Use Shrink Tubing With Wire Size
30 to 28 AWG
Mfr. Part Number
CPGI-RNF-100-1/16-RD-25
Wall Thickness After Shrinking
0.150 in.
Minimum Shrink Temperature
203F
Wall Type
Thin Wall
Pack Quantity
1
Wire Range
30 to 28 AWG
Resists
Abrasion, Solvents, Gasoline, Water, Hydraulic Fluids
General
Adhesive Lined
No
Shrink Tubing Properties
Abrasion Resistant, Solvent Resistant
Features
Physical, Chemical and Electrical Properties that Meet/Exceed Industrial and Military Standards
Shrink Tubing Wall Thickness After Shrinking
0.15 in
I.D. After Shrinking
0.03 in
Standards
UL, CSA, AMS-DTL-23053/5
I.D. Before Shrinking
0.06 in
Tubing Flexibility
Flexible
Package Style
Cut to Length
Tubing Wall Type
Thin Wall
Shrink Tubing I.D. Before Shrinking
0.063 in
Use With Wire Size
30 AWG to 28 AWG
Product Description
Designed for jacketing wire bundles and light-duty harnesses, this heat-shrink tubing helps to resist damage from abrasion and solvents. Its flexible design conforms to irregular shapes. The tubing can also be used to identify and color-code electrical connections and wire bundles.
