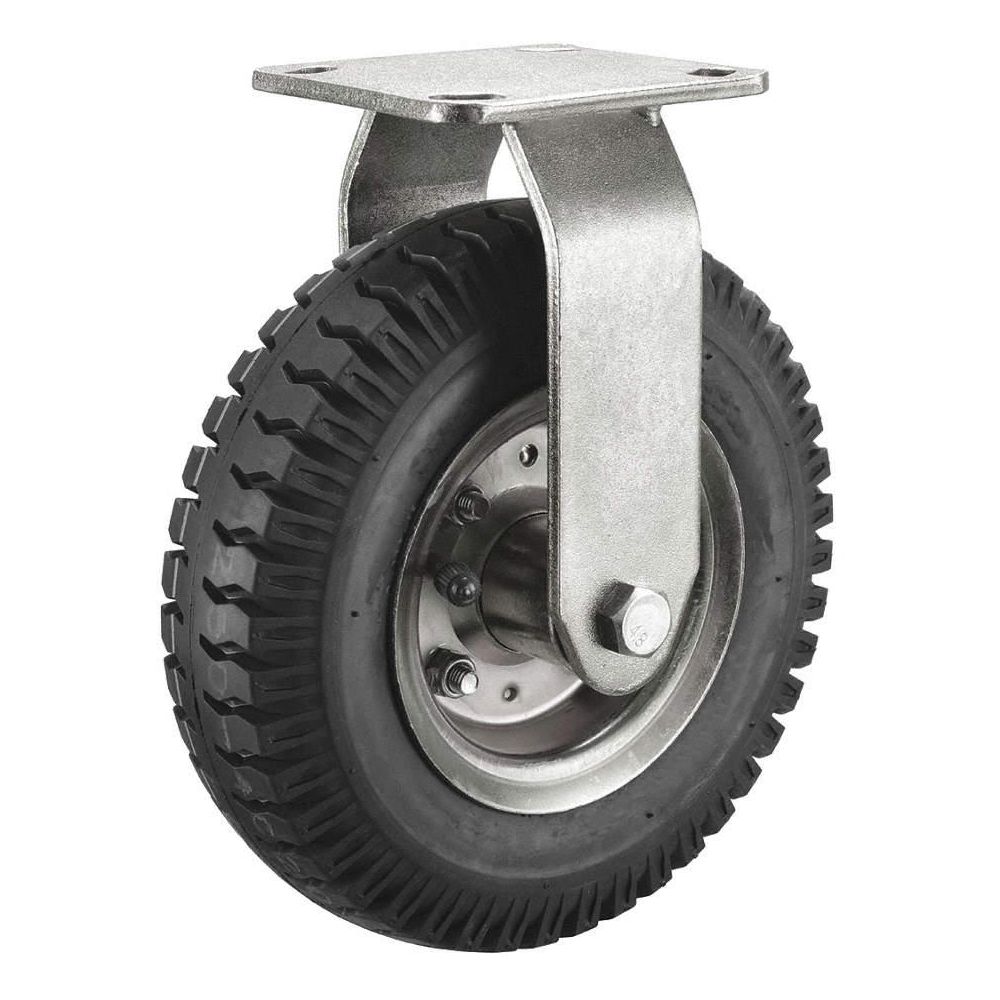

Light Duty, Rigid Plate Caster with Pneumatic Wheels; 200 lb. Load Rating, 6" Wheel Dia.

Hover over image to magnify
Rigid Pneumatic Cstr,6 In,200
Rigid Pneumatic Cstr,6 In,200

#918431-5 | Pkg Qty: 1

$43.09 pkg | $43.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Plate Caster with Pneumatic Wheels
Caster Brake Included
No
Load Rating
200 lb.
Caster Brake Type
No Brake Included
Mfr. Part Number
P21R-P060B-14-H7
Caster Load Rating Range
Light Duty
Mounting Bolt Diameter
3/8 in.
Caster Plate Hole Pattern
B
Mounting Height
7-1/4 in.
Caster Plate Size
4 in. x 4-1/2 in.
Non-Marking
No
Caster Raceway
Double Ball
Number of Mounting Holes
4
Caster Wheel Bearings
Precision Ball
Number of Wheels
1
Caster Wheel/Tread Material
Rubber
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster/Wheel Tread
Diamond
Package Quantity
1
Core Color
Silver
Plate Caster Sub-Type
Rigid
Core Material
Steel
Shipping Weight
5 lb.
Durometer
65 Shore A
Wheel Color
Black
Frame Finish
Zinc Plated
Wheel Diameter
6 in.
Frame Material
Steel
Wheel Width
2 in.
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Inside Bolt Hole Spacing
3 in. x 3 in.
General
Brake Type
No Brake Included
Mounting Plate Size
4 in x 4-1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Mounting Type
Plate
Raceway
Double Ball
Caster Product Group
Rigid Caster
Swivel Raceway Type
Double Ball
Caster Temp. Range Available
No
Tire Rim Dia.
4 in
Hub Materials
Steel
Tire Thickness
1/4 in
Hub Position
Symmetrical
Wheel Bearing Type
Precision Ball
Hub Width
2-7/16"
Wheel Dia.
6 in
Load Rating Range
0 to 299 lb
Wheel/Tread Hardness
65 Shore A
Mounting Bolt Dia.
3/8 in
Wheel/Tread Material
Rubber
Mounting Plate Bolt Hole Pattern
B

Product Description

Medium-duty pneumatic plate casters have zinc-plated steel frames and lightweight wheels with air-filled tires. These casters cushion loads against shock and vibration, and they have double ball swivels that allow them to swivel smoothly. Pneumatic wheels puncture more easily than semipneumatic and flat-free wheels, and they require maintenance to keep the wheels' tires filled to the correct air pressure. They are suitable for use in areas where they will not encounter sharp debris. These casters can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
