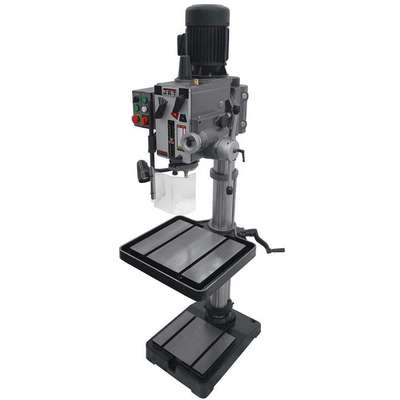

Jet Floor Drill Press: Geared Head, Fixed, 60 RPM û 3,000 RPM, 230 VAC /Three-Phase, 20" Swing

Hover over image to magnify
Geared Head Drill w/ Tapping,
PI_Asset_1757541
PI_Asset_1765338
PI_Asset_1771922
PI_Asset_1773581
PI_Asset_1774039
PI_Asset_1774040
Geared Head Drill w/ Tapping,

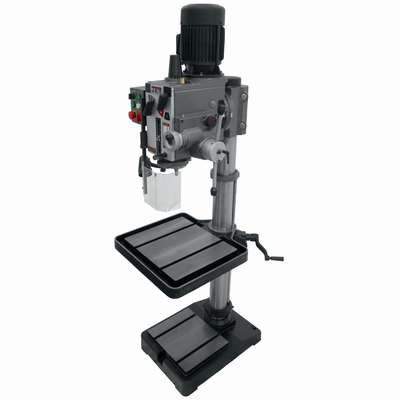

PI_Asset_1757541
PI_Asset_1765338

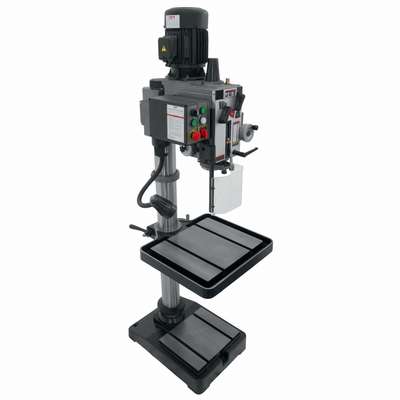

PI_Asset_1771922
PI_Asset_1773581

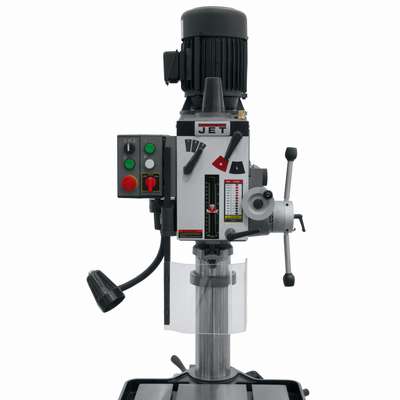

PI_Asset_1774039
PI_Asset_1774040

#918423-4 | Pkg Qty: 1

$7,581.86 pkg | $7,581.86 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Application
Drilling, Tapping
Overall Height
71 in.
Brand
JET
Overall Width
32 in.
Chuck Size
Not included
Package Quantity
1
Corded/Cordless
Corded
Phase
Three-Phase
Drive Type
Geared Head
RPM
120 to 1500
Horsepower
2 HP
Shipping Weight
708 lb.
Hz
60
Speed Control
Fixed
Item
Floor Drill Press
Swing
20 in.
Mfr. Part Number
354026
Voltage
240
Overall Depth
24 in.
General
Chuck Style
Keyed
Nominal Voltage
230V AC
Column Diameter
4 1/2 in
Power Down Feed Included
Yes
Coolant System
No
Quill Diameter
3 in
Current
3.2/3.2 A
Radial Arm
No
Drill Press Application
Drilling, Tapping
Speed Adjustment
Gear Head
Drill Press Type
Floor Stand
Speed Range
120 to 1,500 RPM
Drill Spindle Travel
4 in - 5 in
Spindle Speed Range
60 RPM - 3,000 RPM
Drilling Capacity in Cast Iron
1 1/2 in
Spindle Travel
4 1/2 in
Drilling Capacity in Stainless Steel
1 in
Spindle-to-Column Distance
10 in
Drilling Capacity in Steel
1 1/4 in
Table Length
21 3/4 in
Drilling Capacity in Wood
1 1/2 in
Table Load Capacity
275 lb
Guard Included
Yes
Table Slot
Yes
Includes
Built in Spindle Lock, Tapping Head
Table Slot Width
5/8 in
Maximum Overall Height
71 in
Table Width
19 1/2 in
Maximum Spindle Speed
3,000 RPM
Tapping Capacity in Stainless Steel
3/4 in
Maximum Spindle-to-Base Height
44 5/16 in
Tapping Capacity in Steel
15/16 in
Maximum Spindle-to-Table Height
30 1/2 in
Tapping Compatible
Yes
Minimum Spindle Speed
60 RPM

Product Description

Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 1/4 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Built-in Spindle Lock, Tapping Head, Power Down Feed Included No, Voltage 240, Number of Speeds 12, Chuck Size Not Included, Spindle Speed 120 to 1500 rpm, Spindle Travel 4 1/2 in, Base Size 26 in x 18 in, Table Work Surface 21-1/4 in x 18-1/2 in, Hz 60, Phase 3, Number of T-Slots 2
