HONEYWELL

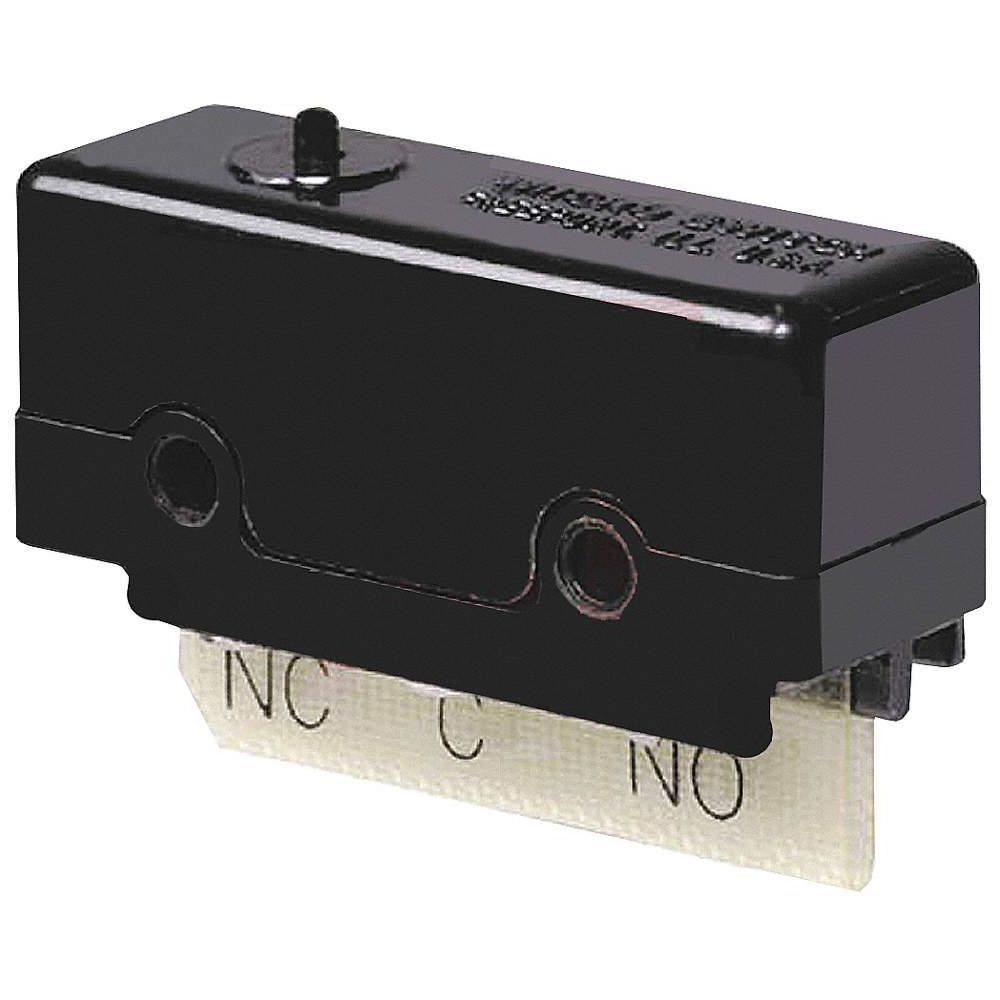

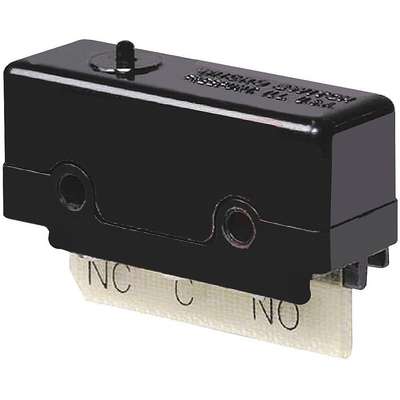

Honeywell Pin, Plunger Industrial Snap Action Switch; Series DT

Hover over image to magnify
Lg Basic Snap Swch,10A,Dpdt,
Lg Basic Snap Swch,10A,Dpdt,

#918376-9 | Pkg Qty: 1

$164.10 pkg | $164.10 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actuator Length
2.00 in.
Maximum Pretravel
0.075 in.
Actuator Type
Pin, Plunger
Mfr. Part Number
DT-2R-A7
Amperage
10 A
Mounting Dimension
1.00 in. Centers
Basic Actuator Type
Plunger
Number of Circuits
2
Brand
HONEYWELL
Operating Force
7.0 to 10.0 oz.
Contact Form
DPDT
Operating Temperature Range
-6 deg. F to 185 deg. F
Contact Type
DPDT
Over Travel
0.0050 in.
Current Rating
10A
Package Quantity
1
DC Contact Rating
10 A @ 24 V
Release Force
2.00 oz.
Depth
0.7 in.
Series
Dt
Differential Travel
0.040 to 0.060 in.
Shipping Weight
.05 lb.
Electrical Connection
Screw
Snap Action Switch Type
Industrial Snap Action Switch
Height
1 in.
Type of Actuator
Pin Plunger
Housing Material
General Purpose Phenolic
Voltage
28 Vdc
Item
Industrial Snap Action Switch
Voltage Rating
24 VDC
Length
2 in.
Width
2 in.
Lever Actuator Length
Not Applicable
General
Actuator Type - Snap Action Switch
Pin, Plunger
Mounting Dimension - Snap Action Switch
1.00 in Centers
Basic Actuator Type - Snap Action Switch
Plunger
Number of Circuits - Snap Action Switch
2
Contact Form- Switches
DPDT
Operating Temp. Range
-67° to 185°F
DC Contact Rating - Snap Action Switch
10 A @ 24 V
Standards
UL, CSA
Depth - Snap Action Switch
0.7 in
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Screw
Width - Snap Action Switch
2 in
Height - Snap Action Switch
1 in

Product Description

This large basic snap switch is designed for use in irrigation systems, semi-trailer trucks, timing devices, office equipment, test instruments, medical and dental equipment, HVAC equipment, manually operated devices, and valves. It consists of two independent single-pole double throw circuits in one housing actuated by one actuator. The terminals are separated by a non-conductive shield to reduce shorting.
