ENERPAC

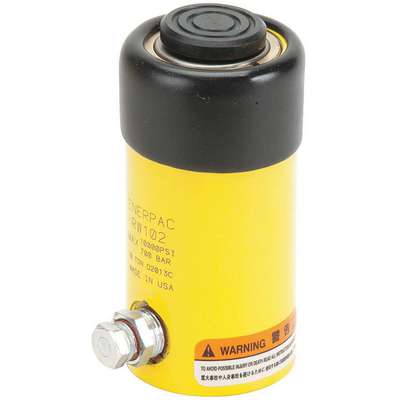

10 tons Single Acting Universal Cylinder Steel Universal Cylinder, 2-1/8" Stroke Length

Hover over image to magnify
Univer. Cylinder,10tons,2-1/
Univer. Cylinder,10tons,2-1/

#918366-5 | Pkg Qty: 1

$729.67 pkg | $729.67 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
ENERPAC
Pack Quantity
1
Item
Hydraulic Ram
Shipping Weight
4.65 lb.
Mfr. Part Number
RW102
General
Base Bolt Circle Dia.
1.56 in
Nominal Stroke Length
2 in
Center Hole Dia.
1 1/2 in
Oil Capacity Push
4.75 cu in
Effective Push Area
2.23 sq in
Outside Dia.
2.25 in
Extended Height
7.01 in
Plunger Dia.
1.38 in
Includes
Saddle
Plunger Thread Size
1"-8
Max. Pressure
10,000 psi
Retracted Height
4.78 in
Max. Push Capacity
10 ton
Single Acting/Double Acting
Single Acting

Product Description

Solid-plunger block-body hydraulic cylinders are single-acting, which means they provide movement in one direction and have an internal spring that returns the cylinder to its starting position.

Block-body hydraulic cylinders are linear, single-acting cylinders that provide movement in one direction and have a spring that returns the rod to the starting position. They can be used for push and pull operation. They can be mounted directly to the top or bottom of a fixture and have a compact design that allows them to be installed in confined spaces. Block-body hydraulic cylinders can be used installed in medium-cycle, low- and high-pressure applications such as machining, testing stations, and hydraulic presses.

Item Barcode
9183665
Univer. Cylinder,10tons,2-1/
 NameItemDescription
Grainger DropshipGrainger Dropship23NP44Univer. Cylinder,
UNSPSC CODESUNSPSC CODES27121604
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Univer. Cylinder,
