PARKER

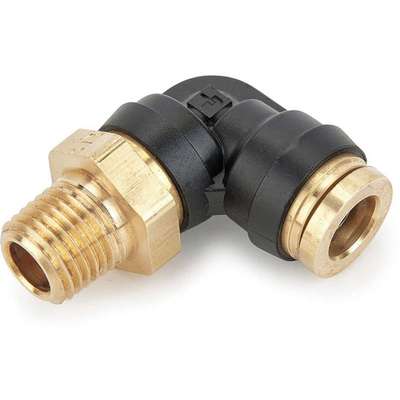

DOT Approved Male Elbow: Composite, Push-to-Connect x MNPTF, 1/4 in. Tube OD x 1/4 in. Pipe Thread, 10 PK
Hover over image to magnify
#918360-9 | Pkg Qty: 10
$93.70 pkg | $9.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Angle
90 deg.
Material
Nylon 12 Body
Body Material
Composite
Mfr. Part Number
369PTC-4-4
Brand
PARKER
Package Quantity
10
Composite DOT Push-to-Connect Fittings Type
Elbows
Pipe Thread
1/4 in.
Connection Type
Male
Shape
Elbow
DOT Approved
Yes
Shipping Weight
.57 lb.
Fitting Style
Composite
Temperature Range
-40 deg. F to 200 deg. F
Fitting Type
Push-To-Connect
Tube Outside Diameter
1/4 in.
Hex Size
9/16 in.
Working Pressure
Up to 250 psi
General
Application
Air
Maximum Operating Pressure
250 psi
End Connection Type
Push-to-Connect, Threaded
Overall Length
11/16 in
Fitting Shape
Elbow
Resistance Properties
Impact-Resistant
Fitting Side A Connection Type
Push-to-Connect
Specific Fitting Shape
90 Degrees Elbow Adapter
Fitting Side A Tube Outer Diameter
1/4 in
Standards
DOTFMVSS 571106, SAE J1131, SAE J2494-3
Fitting Side B Connection Type
MNPTF
System of Measurement
Imperial
Fitting Side B Pipe Size
1/4 in
Product Description
D.O.T.-Approved Push-to-Connect Brass Fittings
- Max. pressure: 250 psi Temp. range: -40° to 200°F Pkg. qty.: 10
- Full-flow fittings have antikink feature and low-temperature nitrile seals. Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle. Use only with SAE-compliant tubing.
- Meet D.O.T. FMVSS 106 and SAE J2494-3 standards.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
90 Male Elbow, 1/4 In.,PK10
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 16W562 | 90 Male Elbow, 1/4 |
 | UNSPSC CODES | 40183101 | |
 | VMRS (ATA) CODES | 053-006-009 | 90 Male Elbow, 1/4 |
