DAYTON

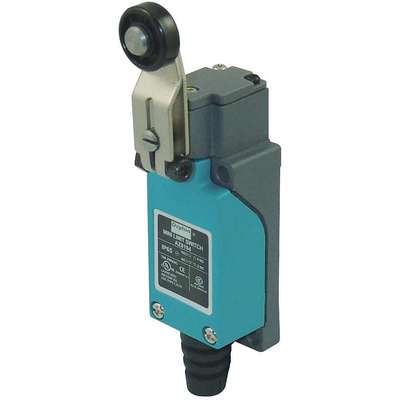

Dayton Rotary, Roller Lever General Purpose Limit Switch; Location: Side, Contact Form: SPDT, Vertical Move
Hover over image to magnify
#918298-6 | Pkg Qty: 1
$23.43 pkg | $23.43 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 300 V
Limit Switch Style
General Purpose Limit Switch
Actuator Location
Side
Mfr. Part Number
12T959
Actuator Style
Rotary Lever Arm
Movement
Vertical
Amperage
10 A
NEMA Rating
1
Basic Actuator Style
Rotary
Operating Force
25.50 in.-oz.
Body Depth
1.01 in.
Operating Temperature Range
-1 deg. F to 158 deg. F
Body Height
2.41 in.
Package Quantity
1
Body Style
Miniature
Roller Diameter
18 mm
Body Width
1.12 in.
Roller Material
Nylon
Boot Sealed Actuator
No
Roller Width
6.3mm
Brand
DAYTON
Series
Dayton
Cable Length
3 ft.
Shipping Weight
.4 lb.
Contact Form
SPDT
Style
Rotary Lever
DC Contact Rating
10 A @ 300 V
Threaded for Panel Mounting
No
Depth
1.6 in.
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Electrical Connection
Screw Terminals
Type
General Duty
Hazardous Location
No
Voltage
300 VAC/DC
Height
4.96 in.
Voltage Rating
300 VAC/DC
IP Rating
65
Width
1.12 in.
Item
General Purpose Limit Switch
General
AC Contact Rating - Limit Switch
10A @ 300V
DC Contact Rating - Limit Switch
10A @ 300V
Actuator Location - Limit Switch
Side
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Roller Lever, Rotary
Mounting Hole - Limit Switch
(4) 0.20 in dia
Basic Actuator Style - Limit Switch
Rotary
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Body Depth - Limit Switch
1.01 in
Mounting Hole Spacing - Limit Switch
2.21 in x 0.83 in
Body Height - Limit Switch
2.41 in
Operating Temp. Range
-14° to 158°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
1.12 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Threaded for Panel Mounting - Limit Switch
No
Contact Form- Switches
SPDT
Product Description
This compact limit switch features a plunger actuator, screw terminal connectors, nylon roller construction, and vertical movement.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Compact Limit Switch
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 12T959 | Compact Limit Switch |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Compact Limit Switch |
