DAYTON

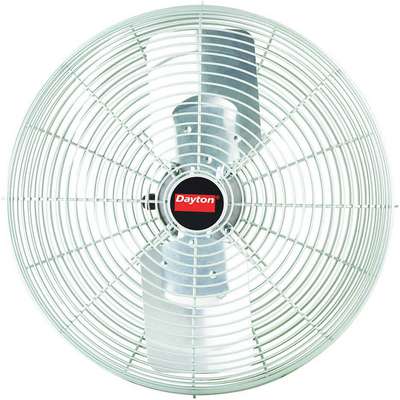

Dayton 24" Corrosion-Resistant Industrial Fan, Stationary, Ceiling, 115 VAC

Hover over image to magnify
Air Circulator,24 In,6400 Cfm,
Air Circulator,24 In,6400 Cfm,

#918296-2 | Pkg Qty: 1

$296.66 pkg | $296.66 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Circulator Height
31 in.
Motor Type
Permanent Split Capacitor
Air Flow
6,400 cfm
Mounting Location
Ceiling
Assembled/Unassembled
Yes
NEMA Plug Configuration
5-15P
Bearing Type
Ball
Number of Blades
3
Blade Diameter
24 in.
Number of Conductors
3
Blade Material
Aluminum
Number of Speeds
1
Brand
DAYTON
Oscillating
No
Cord Length
10 ft.
Outside Diameter
27 in.
Drive Type
Direct
Package Quantity
1
Guard Material
Steel
Phase
1
Hz
60 Hz
Shaft Diameter
1/2 in.
Item
Industrial Fan
Shipping Weight
36.5 lb.
Mfr. Part Number
1ZCN8
Sound Level
74 dBA
Mobile/Stationary
Stationary
Standards
cULus Listed
Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Automatic
Motor HP
1/4
Voltage
115V AC
Motor Insulation
Class B
Watts
320
Motor RPM
1100
Width
27 in.
General
Air Velocity @ 10 Ft.
1050 fpm
Fan Housing Material
Steel
Air Velocity @ 20 Ft.
465 fpm
Fan Mounting Location
Ceiling
Air Velocity @ 40 Ft.
150 fpm
Includes
S Hooks and Mounting Chains
Application
Greenhouse Cooling
Max. Ambient Temp.
104 Degrees F
Assembly Required
No
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Polyester Powder Coated Gray
Fan Cord Length
10 ft

Product Description

Corrosion-resistant industrial wall-mount fans are made of materials that withstand exposure to moisture to allow operation in wet or humid areas without damage to the fan. Indoor uses include regulating temperature in greenhouses to optimize plant growth and ventilating livestock buildings to prevent heat stress in animals and reduce the buildup of moisture, manure gases, pathogens, and dust. They're also used as outdoor mountable fans for cooling people in pool areas and other high-moisture locations. These air circulators have a totally enclosed motor to keep out water and debris.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
