TACO

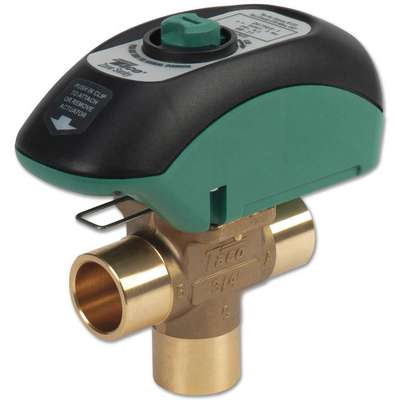

Taco Three Way, Geothermal System Sweat 1/2 Motorized Zone Valve, 24VAC, 1.5Cv, 2-Pin Screw Connectors fo

Hover over image to magnify
Valve,3 Way,Open System,1/2 In
Valve,3 Way,Open System,1/2 In

#918292-8 | Pkg Qty: 1

$267.17 pkg | $267.17 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
TACO
Mfr. Part Number
V050C3G1ZA024Q4A2
Connection Type/Size
Sweat 1/2 in.
Package Quantity
1
Depth
2-3/8 in.
Shipping Weight
1.45 lb.
Height
5-1/8 in.
Width
5-5/16 in.
Item
Motorized Zone Valve
General
Coefficient of Volume
1.5
Includes
End Switch
Connection Type/Size (In.)
Sweat 1/2
Max. Water Temp. (Deg. F)
220 Degrees F
For Use With
Geothermal Systems
Safe Working Water PSI
300 psi

Product Description

This Taco® Zone Sentry valve is designed for a variety of applications including 15 psi geothermal steam, heating systems, or in chilled water where condensation is present. The ball valve installs in any orientation, and the actuator can be replaced in seconds. The snap-in quick connects on the back of the valve allow for and easy and secure wiring hook-up. The green LED shows full functionality of the valve’s operation and thermostat status. During a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90° and is also marked with a slot to indicate the position of the valve.

Item Barcode
9182928
Valve,3 Way,Open System,1/2 In
 NameItemDescription
Grainger DropshipGrainger Dropship12M824Valve,3 Way, Open System,
UNSPSC CODESUNSPSC CODES40141609
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Valve,3 Way, Open System,
