DAYTON

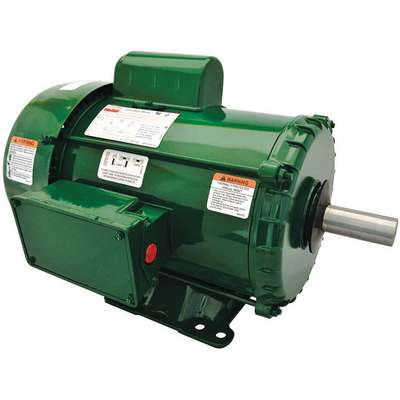

Dayton 3 HP High Torque Farm Duty Motor,Capacitor-Start,1740 Nameplate RPM,230 Voltage,Frame 184T

Hover over image to magnify
Farm Duty Mtr,Cap Start,Tefc,

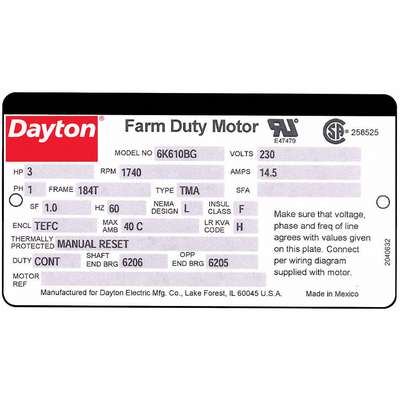

PI_Asset_1766157
Farm Duty Mtr,Cap Start,Tefc,
PI_Asset_1766157

#918270-4 | Pkg Qty: 1

$1,378.51 pkg | $1,378.51 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start/Run
Brand
DAYTON
Mounting
Base
Duty
Continuous
NEMA/IEC Frame
184T
Duty Cycle
Continuous
Nameplate RPM
1740
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
17-1/8 in.
Finish
Green
Pack Quantity
1
Frame
184T
Phase
Single
Full Load Amps
14-1/2
Rotation
CW/CCW
Hz
60
Service Factor
1
Insulation Class
F
Shaft Length
2-3/4 in.
Item
High Torque Farm Duty Motor
Shipping Weight
75 lb.
Length Less Shaft
14-3/8 in.
Thermal Protection
Manual
Mfr. Part Number
6K610
Type
High Torque
Motor Design
Capacitor-Start
Voltage
230 VAC
General
Capacitor Required
Included
Motor Service Factor
1
HP
3
Motor Shaft Design
Keyed
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Sub Application
High Torque
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Manual
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
79.6 %
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
1 1/8 in
Motor Mounting Position
Horizontal
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Mounting Type
Rigid Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Product Description

High torque farm-duty AC motors can power conveyors, silo unloaders, barn cleaners, compressors, and manure pumps under heavy load conditions. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
