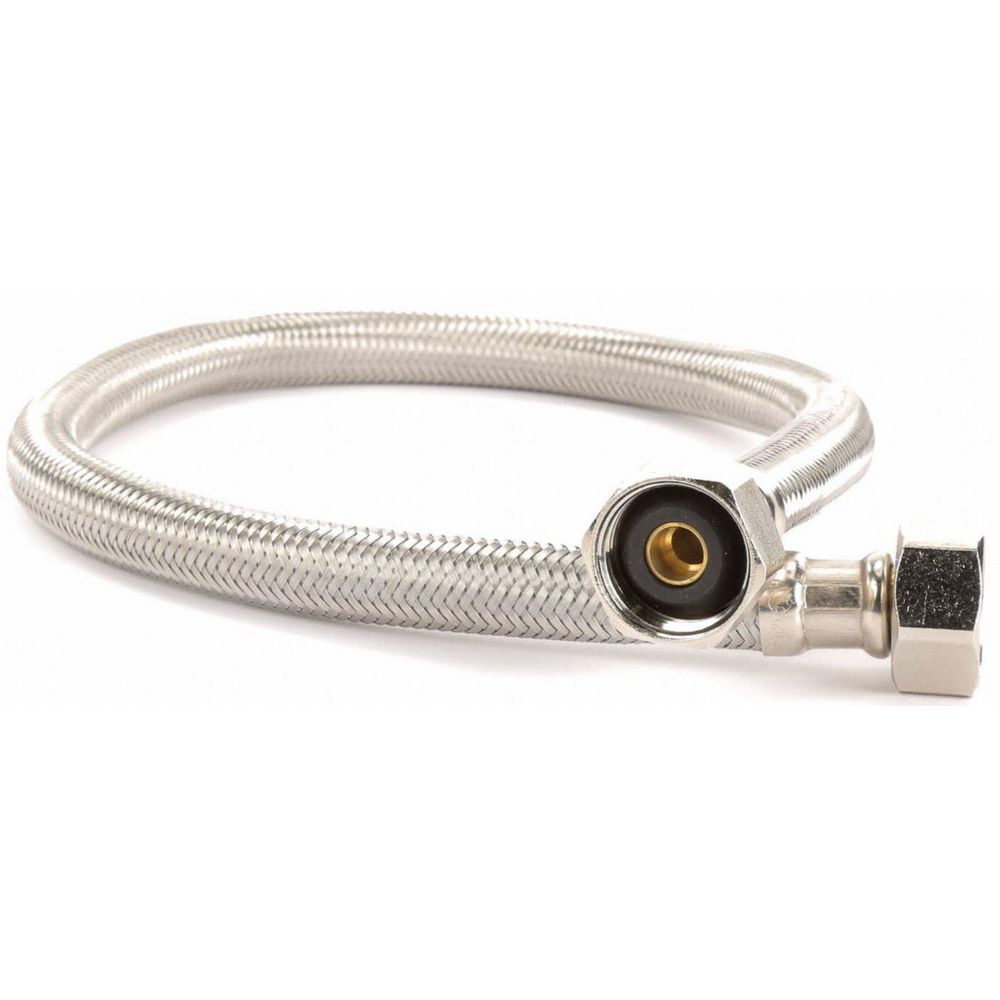

Water Connector: 3/8 in Hose Inside Dia., 125 psi, PVC, 304 Stainless Steel, 20 in Hose Lg, Faucet

Hover over image to magnify
Braided Connector,1/2 Fip x 1/
PI_Asset_1367652
Braided Connector,1/2 Fip x 1/
PI_Asset_1367652

#918181-7 | Pkg Qty: 1

$7.47 pkg | $7.47 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Material
Stainless Steel Braided
Finish
Stainless Steel
Maximum Working Pressure
125 psi
Inlet Size
1/2 in.
Mfr. Part Number
11K762
Inlet Type
FIP
Outlet Type
FIP
Inner Core
Triple Reinforced PVC
Outside Diameter
1/2 in.
Item
Water Connector
Package Quantity
1
Length
20 in.
Shipping Weight
.25 lb.
General
Application
Faucet
Hose Fitting B Material
Brass
Fitting Material
Brass x Brass
Hose Fitting B Type
FIP
For Media Type
Water
Hose Fittings
Brass 1/2 in FIP x Brass 1/2 in FIP
Hose Configuration
Coupled Assembly
Hose Tube Material
PVC
Hose Cover Material
304 Stainless Steel
Max. Working Pressure @ 70 F
125 psi
Hose Fitting A Material
Brass
Standards
IAPMO, NSF61
Hose Fitting A Type
FIP
Temp. Range
40 Degrees to 180 Degrees F

Product Description

These supply/connector hoses have fittings on both ends for connecting sink faucets to water lines. They are used in residential and commercial restrooms.

Faucet connectors (sometimes called faucet supply lines) are used to connect a sink faucet to a water line so that water can flow to the faucet.
