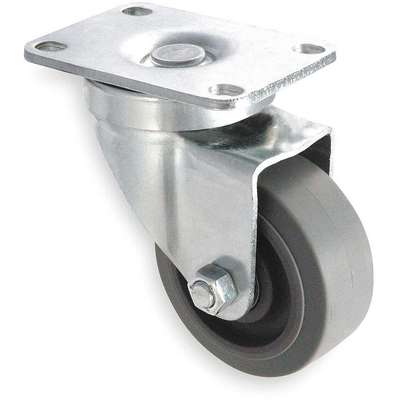

Standard Plate Caster, Swivel, Thermoplastic Rubber, 200 lb., 3" Wheel Dia.

Standard Plate Caster, Swivel, Thermoplastic Rubber, 200 lb., 3" Wheel Dia.
Swivel Plate Caster,Rubber,3
PI_Asset_947820

#918177-3 | Pkg Qty: 1

$19.52 pkg | $19.52 ea
Item Number 918177-3
Scanner Description Swivel Plate Caster,Rubber,3
Inventory Status Drop Ship Item
Weight 1.65 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Frame Finish
Zinc Plated
Caster Brake Included
No
Inside Bolt Hole Spacing
1-3/4 in. x 2-13/16 in.
Caster Core Material
Polyolefin
Item
Plate Caster
Caster Group
Swivel Caster
Load Rating
200 lb.
Caster Load Rating Range
Light Duty
Mfr. Part Number
1UHY2
Caster Plate Hole Pattern
C
Number of Wheels
1
Caster Plate Size
2-1/2 in. x 3-5/8 in.
Outside Bolt Hole Spacing
1-3/4 in. x 3-1/16 in.
Caster Raceway
Double Ball
Overall Height
4-1/4 in.
Caster Swivel Lock Type
No Lock Included
Pack Quantity
1
Caster Temperature Range Available
No
Plate Caster Sub-Type
Swivel
Caster Wheel Bearings
Ball
Plate Size
2-1/2 in. x 3-5/8 in.
Caster Wheel Shape
Standard
Wheel Color
Gray
Caster Wheel/Tread Material
Rubber
Wheel Color Family
Gray
Core Color
Gray
Wheel Diameter
3 in.
Durometer
75 Shore A
Wheel Width
1-1/4 in.
Features
Corrosion Resistant

Product Description

Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds. These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9181773
  Name Item Description
Grainger Dropship Grainger Dropship 1UHY2 Swivel Plate Caster,
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Swivel Plate Caster,
