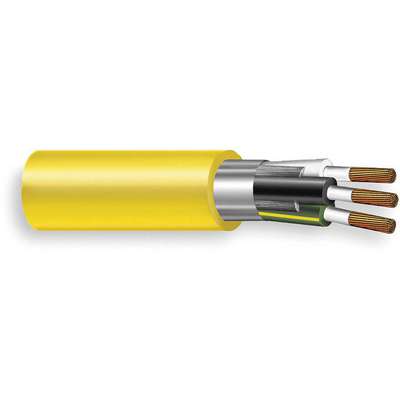

250 ft. Portable Cord; Conductors: 3, Wire Size: 12 AWG, Jacket Type: SOOW, Jacket Color: Yellow

250 ft. Portable Cord; Conductors: 3, Wire Size: 12 AWG, Jacket Type: SOOW, Jacket Color: Yellow
Portabl Cord,12/3 Awg,250 Ft.,
250 ft. Portable Cord; Conductors: 3, Wire Size: 12 AWG, Jacket Type: SOOW, Jacket Color: Yellow Video
250 ft. Portable Cord; Conductors: 3, Wire Size: 12 AWG, Jacket Type: SOOW, Jacket Color: Yellow Video
250 ft. Portable Cord; Conductors: 3, Wire Size: 12 AWG, Jacket Type: SOOW, Jacket Color: Yellow Video
250 ft. Portable Cord; Conductors: 3, Wire Size: 12 AWG, Jacket Type: SOOW, Jacket Color: Yellow Video

#918039-7 | Pkg Qty: 1

$577.57 pkg | $577.57 ea
Item Number 918039-7
Scanner Description Portabl Cord,12/3 Awg,250 Ft.,
Inventory Status Drop Ship Item
Weight 57.9 lb
Brand CAROL

Technical Specifications

Brand
CAROL
Maximum Voltage
600 V
Color Code
Black, White, Green/Yellow
Mfr. Part Number
02642.85.05
Color Family
Yellow
Nominal Outside Diameter
0.600 in.
Conductor Material
Tinned Copper
Number of Conductors
3
Features
Stranding for Maximum Flexibility, Sequential Footage Marking, Resists Heat, Flame, Water, Oils, Acids, Chemicals, Abrasion, Cuts, Crushing and Ozone, Cleanable Rubber Jacket, Reduced Scuffing
Pack Quantity
1
Gauge/Conductor
12/3
Spool/Coil Length
250 ft.
Indoor/Outdoor
Indoor/Outdoor
Standards
UL Flexible Cord/ CSA Flexible Cord/ CE/MSHA Approved/OSHA Acceptable/RoHS Compliant
Item
Portable Cord
Stranded / Solid
Stranded
Jacket Color
Yellow
Temperature Range
-58 deg. F to 221 deg. F
Jacket Material
EPDM Rubber Super Vu-Tron® Supreme
Wire Color
Black, White, Green/Yellow
Jacket Type
SOOW
Wire and Cable Item
Portable Cord
Maximum Amps
25
Wire/Cable Size
12 AWG

Product Description

SOOW and SJOOW portable cord are types of heavy-duty service cord with oil-resistant insulation and a flexible thermoset rubber jacket that is oil-, water-, and weather-resistant. The jacket hardens under a direct application of heat. This allows the cord to be unaffected by aging, abrasion, water, sunlight, and ozone, making it extremely durable. SOOW cord is rated for 600V while SJOOW, a junior service cord, is rated for 300V. SOOW is the most popular type of portable cord and is typically used to power industrial applications, such as machines and power tools, and marine applications, such as dockside motors.

Item Barcode
9180397
  Name Item Description
Grainger Dropship Grainger Dropship 2TKX4 Portabl Cord, 12/3 AWG,250
UNSPSC CODES UNSPSC CODES 26121629
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Portabl Cord, 12/3 AWG,250
