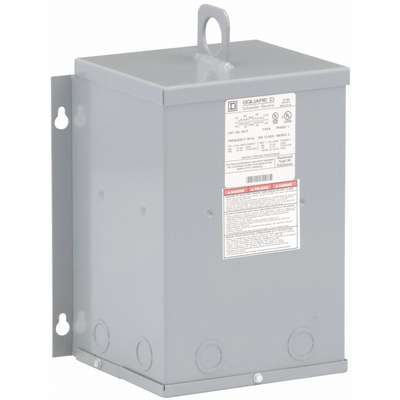

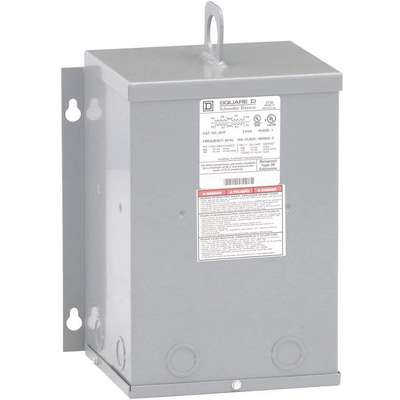

Square D Single Phase Transformer, 120 VAC, 240 VAC Output, 240 VAC, 480 VAC Input

Name: Square D Single Phase Transformer, 120 VAC, 240 VAC Output, 240 VAC, 480 VAC Input
Brand: SQUARE D
SKU: 9179745
Price: 1313.42 USD
Availability: InStock

Hover over image to magnify

#917974-5 | Pkg Qty: 1

$1,313.42 pkg | $1,313.42 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

SQUARE D

Mfr. Part Number

3S1F

Color Family

Gray

Mfr. Warranty Length

1 yr.

Depth

6-1/2 in.

Mounting

Wall

Enclosure Finish

Powder Coated

Outdoor Rated

Yes

Enclosure Material

Steel

Output Voltage

120/240 VAC

Enclosure Rating

NEMA 3R

Package Quantity

Enclosure Type

Indoor/Outdoor

Phase

Height

10-1/2 in.

Shipping Weight

60 lb.

Temperature Rise

115C

IP Rating

Transformer Winding Material

Aluminum

Input Voltage

240/480 VAC

VA Rating

3 k VA

Item

Single Phase Transformer

Voltage Function

Step Down

Knockout Size

3/4 in., 1 in.

Width

8.7 in.

General

Hz - Electrical

60 Hz

Phase - Electrical

Single

Input Voltage - Transformer

240V AC, 480V AC

Standards

NEMA ST-20, CSA Certified, cULus Label

Knockout Size - Transformer

3/4 in, 1 in

Temp. Rise

115°C

Mounting - Transformer

Wall

VA Rating - Transformer

3 kVA

Outdoor Rated - Transformer

Yes

Voltage Function - Transformer

Step Down

Output Voltage - Transformer

120V AC, 240V AC

Winding Material - Transformer

Aluminum

Product Description

Export transformers are designed to accommodate voltage systems world-wide. Their stainless steel enclosures provide better corrosion resistance than standard painted enclosures.
