ACUITY LITHONIA

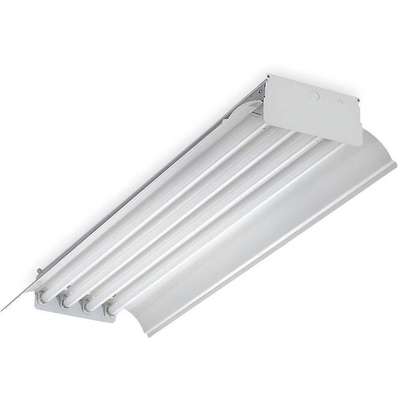

Acuity Lithonia 96" x 16" x 5-1/2" Linear Low Bay with Medium Light Distribution
#917963-3 | Pkg Qty: 1
$322.49 pkg | $322.49 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ballast Type
Electronic
Mfr. Warranty Length
1 yr. Limited Warranty
Brand
ACUITY LITHONIA
Mounting
Individually or in a Row, Direct to Surface or Suspended
Height
5-1/2 in.
Number of Lamps
4
Housing Finish
High Gloss Enamel
Package Quantity
1
Item
Premium Series Fluorescent Fixture
Reflector Style
Non-Apertured
Lamp Included
No
Series
Ej
Lamp Type
Fluorescent
Shipping Weight
32.51 lb.
Lamp Watts
57 W
Voltage
120 to 277 V
Length
96 in.
Width
16 in.
Mfr. Part Number
EJ 4 96T8 MVOLT GEB10IS
General
Ambient Temp. Range
-4 Degrees to 77 Degrees F
Light Distribution
General
Ballast Start Type
Instant Start
Lighting Certification
Unrated
Bay Light Type
Low Bay
Max. Ambient Temp.
77 Degrees F
Bulbs Included
No
Max. Fixture Wattage
236 W
CA Title 24 Compliant
No
Min. Ambient Temp.
-4 Degrees F
Fixture Type - High and Low Bay Fixtures
Linear Low Bay
Nominal Size - Fixtures
1 ft x 8 ft
Fixture Voltage
120 to 277
Number of Bulbs
4
For Bulb Base Type
Single-Pin
Number of Light Bars
4
For Bulb Shape
Linear
Overall Width
16 in
For Bulb Type
T8
Reflector Type
Non-Apertured
Includes
Channel Connector
Standards
Class P, HPF, Non PCB, UL, CSA Certified, CBM
Lamp Watts - Fixtures
59 W
Suggested Fixture Mounting Height
Up to 25 ft
Product Description
Low-Bay Fluorescent Industrial and Shop Lights
- Heavy-duty construction; code gauge steel Painted surfaces with a high-gloss, baked white polyester finish
- Lithonia models with MV ballast are NEMA Premium® and CEE Qualified.
- General-Purpose Premium Series
- For mounting heights up to 20 ft. Embossed reflectors are suitable for most industrial-type applications Premium row aligner (included), allows continuous row mounting Gripper Back Channel feature offers additional mounting options
