Home All Products Fluid Transfer & Pumps Drum & Barrel Pumps Hand Operated Drum Pumps SKU: 917924-3
Share
Print
DAYTON

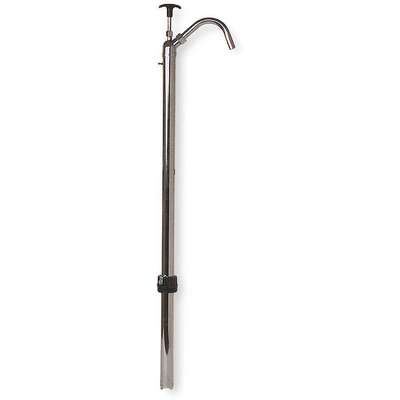

Hand Operated Drum Pump: Piston, 15 gal_30 gal_55 gal For Container Size, Polyethylene/Steel

Hover over image to magnify
Hand Drum Pump,Steel,21/32" Id,
Hand Drum Pump,Steel,21/32" Id,

#917924-3 | Pkg Qty: 1

$38.97 pkg | $38.97 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action Type
Piston
Metered
No
Adapter Diameter
2 in.
Mfr. Part Number
3BY47
Adapter Material
Polypropylene
Ounces per Stroke
4 to 20
Adapter Type
Drum
Outlet Size
21/32" ID, 3/4" OD
Brand
DAYTON
Overall Length
43 in.
Discharge Tube Length
7-1/2"
Package Quantity
1
Discharge Tube Outlet ID Size
5/8"
Piston
Polyethylene
Discharge Tube Outlet Outside Diameter
3/4"
Piston Material
Polyethylene
Discharge Tubing Material
Steel
Power Source
Hand Operated
For Use On
5, 15, 30, and 55 gal. Drums
Seal
PACKING GLAND, REPAIRABLE
Hand Operated Pump Action Type
Hand Operated Piston Pumps
Seal Material
Packing Gland, Repairable
Housing Finish
Chrome Plated
Self-Priming
Yes
Housing Material
Steel
Shipping Weight
4.5 lb.
Inlet Size
1-5/16"
Suction Tube Length
37 in.
Item
Hand Operated Drum Pump
Suction Tube Outlet Outside Diameter
1-1/2 in.
Maximum Liquid Temperature
140°F
Type
Piston Action
Maximum Viscosity
2000 SSU
Wetted Materials
Polyethylene, Steel
General
Application
Degreasers, Waxes, Detergents
Includes
BUNG ADAPTER, REPAIR KIT AND METERING KIT
Bung Connection Dia.
2 in
Includes Bung Adapter
Yes
Compatible Chemicals
Automatic Transmission Fluid, Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Gasoline, Isopropyl (Isopropanol), Kerosene, Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose
No
Discharge Tube Outlet ID
5/8 in
Includes Nozzle
No
Discharge Tube Outlet OD
3/4 in
Includes Spout
Yes
Features
Easy to Use
Includes Suction Tube
Yes
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
20 oz per stroke
For Container Type
Bucket, Drum, Pail
Max. Fluid Temp.
140 Degrees F
For Media Type
Automatic Transmission Fluid, Bleach, Brake Fluid, Diesel Fuel, Ethanol, Gasoline, Isopropanol, Kerosene
Not Recommended Chemicals
DEF, Deionized Water, Fresh Water, Salt Water
For Use With
Degreasers, Detergents, Waxes
Pump Package Type
Basic Pump with Spout
Housing Material - Pumps
Steel
Suction Tube OD
1 1/2 in

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
