POLYMERSHAPES

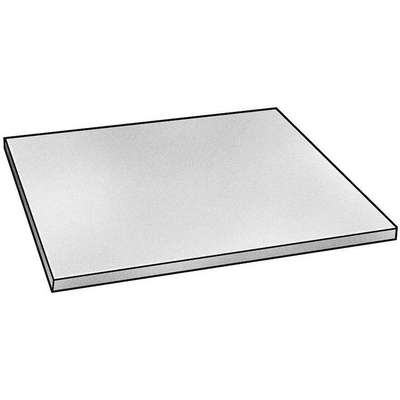

Plastic Sheet: 0.25 in Plastic Thick, 12 in W x 12 in L, Gray, Opaque, 8,350 psi Tensile Strength
Hover over image to magnify
#917861-6 | Pkg Qty: 1
$12.05 pkg | $12.05 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
POLYMERSHAPES
Pack Quantity
1
Color Family
Gray
Shipping Weight
1.72 lb.
Item
Sheet Stock
Tensile Strength
8350 psi
Length
12 in.
Thickness
1/4 in.
Material
PVC Type 1
Width
12 in.
Mfr. Part Number
1YYG3
General
Characteristics
Chemical/Corrosion Resistant, Moisture Resistant, Oil Resistant, Wear Material
Plastic Length
12 in
Corrosion and Chemical Resistance
Excellent
Plastic Length Tolerance
±0.250 in
Friction Rating
Not Slippery
Plastic Properties
Chemical/Corrosion Resistant, Moisture Resistant, Oil Resistant, Wear Material
Grade
Standard
Plastic Thickness
0.25 in
Impact Strength
0.8 ft-lb/in
Plastic Thickness Tolerance
±10%
Impact Strength (Lbs.)
0.4
Plastic Width
12 in
Impact Strength Rating
Poor
Plastic Width Tolerance
±0.25 in
Length Tolerance
+/-0.250 in
Shape
Sheets
Machinability
Fair
Standards
ASTM D-1784
Maximum Temperature
140 °F
Temperature Range
32° to 140°F
Metal Detectable
No
Thickness Tolerance
±10%
Minimum Temperature
32 °F
Type
Chemical Resistant
Nominal Size
12 in W x 12 in L
UV Resistant
No
Operating Temp. Range
32° to 140°F
Water Absorption
0.02 %
Plastic Clarity
Opaque
Water Absorption Rating
Excellent
Plastic Grouping
Sheet Stock
Wear Factor
Fair
Plastic Hardness
84D
Width Tolerance
+/-0.25 in
Plastic Hardness Rating
Hard
Product Description
PVC Type I (Polyvinyl Chloride) Sheets, Round Rods, 90° Angles, and U-channels
- Tensile strength: 8350 psi (sheets); 7300 psi (rods, angles, and U-channels) Continuous use temp.: 140°F Heat deflection temp.: 116°F Impact strength: 0.4 lb. (sheets); 0.9 lb. (rods) Standards: ASTM D1784 Rated as self-extinguishing, PVC Type I has exceptional chemical resistance, good insulation properties, low moisture absorption, and high mechanical and tensile strengths. Can be easily cemented and welded. For use in structural building materials, plumbing applications, electrical insulation, signage, and modeling. Note: Additional sizes are available
