RADNOR

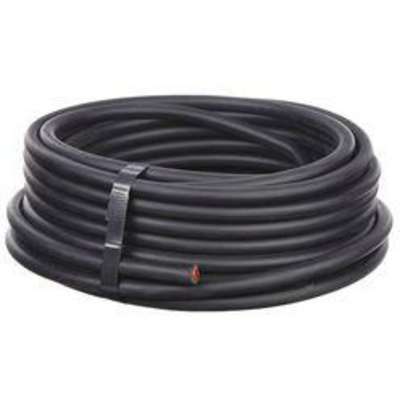

250 ft. EPDM Rubber Welding Cable with 6 AWG, Black

Hover over image to magnify
Welding Cable,6 Awg,250 Ft.,
Welding Cable,6 Awg,250 Ft.,

#917843-9 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Welding Cable,6 Ga.,100ft L,
$144.80 pkg | $144.80 ea
Item: 916682-3
Pkg Qty: 1

Technical Specifications

Key Specifications
Brand
RADNOR
Length
250 ft.
Conductor Material
Copper
Mfr. Part Number
RAD64003484
Conductor Size
6 AWG
Package Quantity
1
Insulation Color
Black
Shipping Weight
33.02 lb.
Insulation Material
EPDM Rubber
Wire Gauge
6 AWG
Item
Welding Cable
General
Conductor Size (AWG)
6
Max. Voltage
600
Insulating Material
EPDM Rubber
Nominal Outside Dia.
0.31 in
Insulation Material - Wire and Cable
EPDM Rubber
Stranding
260 x 30
Length - Wire and Cable
250 ft.
Wire Size - Wire and Cable
6 AWG
Max. Temp.
221°F

Product Description

Welding cable is a flexible, durable electrical cable that supplies power to the secondary circuit of electric welders, which controls the electrode that releases the charge needed for the welding process. Also called an electrode cable, it is commonly used in manufacturing environments to power resistance welding and arc welding equipment, or to replace or repair damaged cable. It has a single, finely stranded conductor wrapped in a nonconductive rubber jacket that is resistant to heat, burns, sparks, and abrasions. The fine copper strands give welding cable more flexibility than other types of electrical wire, and the insulating jacket is designed to hold up to repeated movement over rough surfaces.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9178439
Welding Cable,6 Awg,250 Ft.,
 NameItemDescription
Grainger DropshipGrainger Dropship31UR85Welding Cable,6 AWG,
UNSPSC CODESUNSPSC CODES23271813
VMRS (ATA) CODESVMRS (ATA) CODES053-006-017Welding Cable,6 AWG,
