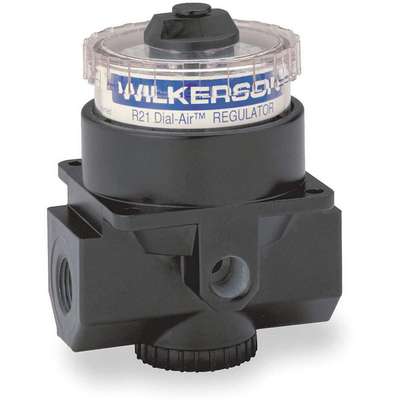

3/4" General Purpose Air Regulator , 220 cfm Max. Flow - Regulators

Zoom Icon

#917840 | Pkg Qty: 1

$106.50 pkg | $106.50 ea
Item Number 917840
Scanner Description Air Regulator,3/4 In NPT,220
Inventory Status Drop Ship Item
Weight 2.1 lb
Brand WILKERSON

Technical Specifications

Adjustment Knob
Non Rising Dial
Maximum Temperature
150°F
Adjustment Range
0 to 160 psi
Mfg Part Number
R21-06-000
Air Consumption
scfm
NPT
3/4 in.
Brand
WILKERSON
Overall Height
4.1 in.
Item
General Purpose Air Regulator
Overall Height-Regulators
4.1 in.
Max. Flow
220 cfm
Overall Width
2.6 in.
Max. Flow - Regulators
220 cfm
Overall Width-Regulators
2.6 in.
Max. Inlet Pressure
300 psi
Pack Quantity
1
Max. Temp. (F)
150
Pipe Size
3/4 in.
Max. Temp. - Regulators
150°F
Type
Modular
Maximum Pressure
300 psi
Valve Design
Balanced

Product Description

The 2-gauge ports can be used as additional regulated outlet ports. Regulator can be serviced without removal from air line. Dial regulator features a transparent, pressure-calibrated, nonrising adjustment dial for quick adjustment of secondary pressure, ±1 psi. Can be mounted in any position so dial face is always visible. For the Max. Flow, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop. For the Adjustment Range, the working range of knob adjustment is designed to permit outlet pressures within their full range. Pressure adjustment beyond this range is also possible because the knob is not a limiting device. This is a common characteristic of most industrial regulators, and limiting devices may be obtained only by special design. WARNING: Do not connect regulator to bottled gas.

Item Barcode
9178400
  Name Item Description
Grainger Dropship Grainger Dropship 5GC17 Air Regulator,3/
UNSPSC CODES UNSPSC CODES 27131603
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Air Regulator,3/
