GREENLEE

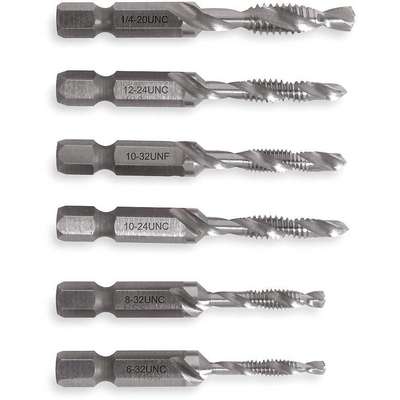

Right Hand High Speed Steel Drill/Tap/Countersink Set, SAE, Uncoated Finish

Hover over image to magnify
Drill/Tap/Countersink Set,Sae,
PI_Asset_958361
Drill/Tap/Countersink Set,Sae,
PI_Asset_958361

#917806-4 | Pkg Qty: 1

$65.12 pkg | $65.12 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
GREENLEE
Primary Material Application
Aluminum, Brass, Copper, Steel
Cutting Direction
Right
SAE or Metric
SAE
Cutting Direction
Right Hand
Shank Type
1/4 in. Quick Change Hex
Drill Bit Sizes Included
#16, #21, #26, #29, #36, #7
Shipping Weight
0.5 lb.
Finish
Uncoated
Sizes Included
6-32, 8-32, 10-24, 10-32, 12-24 and 1/4-20
Impact Rated
No
Spiral Direction
Right Hand
Item
Combination Drill and Tap Set
Tap Size
6-32, 8-32, 10-24, 10-32, 12-24 and 1/4-20
Material
High Speed Steel
Thread Direction
Right Hand
Mfr. Part Number
DTAPKIT
Thread Type
UNC
Number of Pieces
6
Type
Hex Drive One Piece Combination
Pack Quantity
1
General
Case Type
Plastic
Secondary Material Application
Plastic
Coolant Fed
Non-Coolant Through
Secondary Material Application ISO Code
O
Extended Shank
No
Shank Dia.
1/4 in
Features
1/4 in. Hex Shank, Back Taper Beyond Tap, Deburr/Countersink Beyond Back Taper, Split Point Drill Tip, Tap Up To 10 Gauge Mild Steel, Aluminum, Copper, Brass
Shank Type - Machining
Hex
Finish - Machining
Bright (Uncoated)
Smallest Thread Size
1/4 in
Includes
Plastic Case and Quick Change Adapter
Tap Type
Twist Drill and Plug Tap
Largest Thread Size
6 in
Thread Sizes Included
1/4"-20,
Material - Machining
High Speed Steel
Thread Standard
UNC
Measurement System
Fractional Inch
Threads per Inch
20, 24, 32
Primary Material Application ISO Code
N, P

Product Description

These sets contain multiple combination drill-tap-and-countersink tools in a range of sizes. Combination drills, taps, and countersinks make a hole, create threads in the hole, and countersink the top of the hole in one pass.
