DAYTON

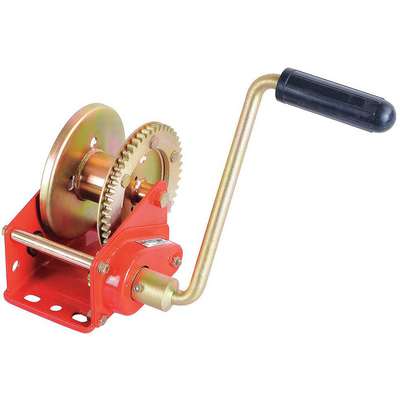

5-3/4"H Lifting, Pulling Hand Winch with 800 lb. 1st Layer Load Capacity; Brake Included: Yes

Hover over image to magnify
Hand Winch,Spur Gear, w/Brake,
Hand Winch,Spur Gear, w/Brake,

#917784-4 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Hand Winch,Spur Gear,w/Brake,
$69.56 pkg | $69.56 ea
Item: 920401
Pkg Qty: 1

Technical Specifications

Key Specifications
1st Layer Load Capacity
800 lb.
Item
Hand Winch
Brake Included
Yes
Mfr. Part Number
12U370
Brand
DAYTON
Overall Height
5-3/4 in.
Frame Color
Red and Yellow Chromate
Overall Length
7-1/8 in.
Frame Material
Steel
Overall Width
6 in.
Gear Ratio
3.5:1
Package Quantity
1
Gear Type
Spur Gear
Shipping Weight
7.43 lb.
Handle Length
8 in.
Winch Type
Lifting, Pulling
General
Application
For Lifting or Pulling
Pulling Capacity Single Line
800 lb.
Drum Capacity for 1/8 In. Cable
183 ft
Standards
SAE J1853
Drum Capacity for 3/16 In. Cable
72 ft
Vertical Lift Max.
800 lb.
Drum Capacity for 7/32 In. Cable
52 ft
Winch Gear Ratio
3.5:1
Includes
Handle With Molded Hand Grip
Winch Gear Type
Spur

Product Description

This manual ratchet winch features a corrosion-resistant frame and rubberized handle for a comfortable, secure grip. A guard on the main gears helps to prevent injuries. Use where freewheeling is not a requirement. Winch cable sold separately.
