WATTS

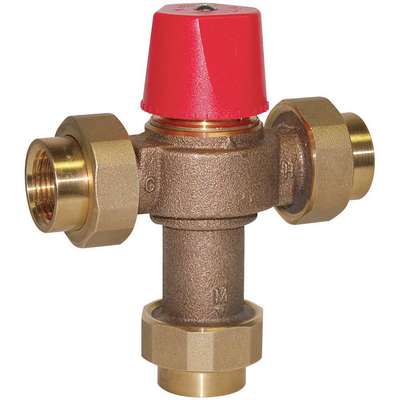

Mixing Valve: Brass, 0.5 to 23 gpm Flow Rate, FNPT Inlet, FNPT Outlet, 3/4 in Inlet Size

Hover over image to magnify
Mixing Valve,Brass,0.5 To 23
PI_Asset_1357024
Mixing Valve,Brass,0.5 To 23
PI_Asset_1357024

#917755-9 | Pkg Qty: 1

$296.33 pkg | $296.33 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Brass
Outlet Size
3/4 in.
Brand
WATTS
Outlet Type
FNPT
Connection Type
Threaded
Overall Height
5-7/16 in.
Inlet Size
3/4 in.
Overall Width
4-7/8 in.
Inlet Type
FNPT
Package Quantity
1
Item
Mixing Valve
Shipping Weight
2.58 lb.
Maximum Pressure
150 psi
Temperature Range (Deg. F)
90 to 160 deg. F
Mfr. Part Number
3/4 LF 1170-UT- M2 3/4"
General
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
Standards
CSA B125 certified,ASSE 1017
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F

Product Description

Low-Lead Point of Use Mixing Valves

  • Hot water temperature control valves are specifically designed for mixing cold and hot water on hot water supply systems. Can be used for various applications to reduce the temperature of hot water from the system and are ideal for radiant heat applications. Can be used in under-the-sink applications to help prevent scalding in commercial and residential applications.
  • Certified for use in potable water applications.
Item Barcode
9177559
Mixing Valve,Brass,0.5 To 23
 NameItemDescription
Grainger DropshipGrainger Dropship5DMF3Mixing Valve, Brass,0.5 to
UNSPSC CODESUNSPSC CODES40141609
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Mixing Valve, Brass,0.5 to
