EATON

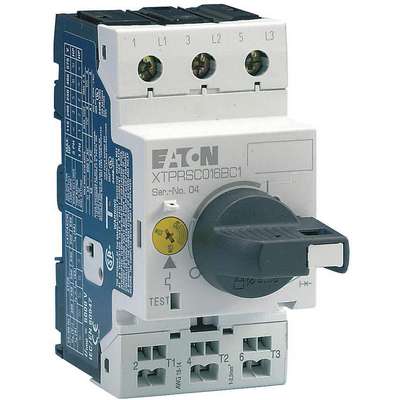

Eaton Manual Motor Protector: 6.30 to 10.00A, Rotary Knob, 1.77 in Wd, 3 hp HP @ 3 Phase - 240V
Hover over image to magnify
#917747-6 | Pkg Qty: 1
$214.30 pkg | $214.30 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
6.30 to 10.00A
Number of Poles
3
Brand
EATON
Pack Quantity
1
Depth
3.46 in.
Shipping Weight
.7 lb.
Frame Size
Frame B
Starter Type
Manual
Height
3.66 in.
Type
Rotary
Item
Manual Motor Protector
Width
1.77 in.
Mfr. Part Number
XTPR010BC1
General
HP @ 1 Phase - 115V
1/2 hp
HP @ 3 Phase - 480V
7 1/2 hp
HP @ 1 Phase - 230V
1 1/2 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 200V
3 hp
NEMA Size
Frame B
HP @ 3 Phase - 230V
3
Operator
Rotary Knob
HP @ 3 Phase - 240V
3 hp
Standards
CSA Certified, IEC, CCC
HP @ 3 Phase - 460V
7-1/2
Product Description
IEC Manual Motor Starters
- Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection
- Eaton
- XT/PKZ Series features push-button or rotary On/Off manual disconnect with lockout provision. Available with screw terminals. Built-in heater and magnetic trip protect motor. Suitable for applications requiring manual starting and stopping of motors. UL 508 Type E and F rated with use of line side adapter.
- UL Listed and CSA Certified. Meet CE and IEC standards.
Expertly Selected Product Pairings
Documents
Item Barcode
Manual Mtr Protector,10A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4WXH9 | Manual Mtr Protector, |
 | UNSPSC CODES | 39122217 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Mtr Protector, |
