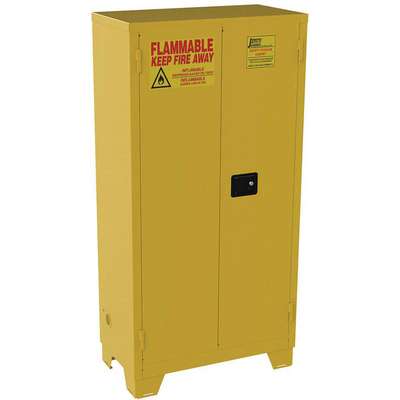

44 gal. Flammable Cabinet, 70" x 34" x 18", Self-Closing Door Type

44 gal. Flammable Cabinet, 70" x 34" x 18", Self-Closing Door Type

#917747 | Pkg Qty: 1

$1,281.51 pkg | $1,281.51 ea
Item Number 917747
Scanner Description Flammable Safety Cabinet,44
Inventory Status Drop Ship Item
Weight 409 lb
Brand JAMCO

Technical Specifications

Additional Shelf
GS134
Material
Galvanized Steel
Brand
JAMCO
Mfr. Part Number
FS44YP
Cabinet Height Range
Full Height
Mounting Type
Standard
Color Family
Yellow
Number of Doors
2
Depth
18 in.
Number of Shelves
4
Door Opening Height
59-3/4 in.
Pack Quantity
1
Door Opening Width
31-1/16 in.
Rated Flammable Storage
Yes
Door Type
Self-Closing
Safety Cabinet Style
Standard with Legs
Finish
Powder Coated
Safety Storage Application
Flammable Cabinet
Height
70 in.
Safety Storage Capacity
44 gal.
Includes
All Welded Double Wall 18 ga. Construction with 1-1/2 in. Insulating Air Space, 2 in. Leakproof Sill to Contain Leaks, Lockable Flush Mounted Handle with (2) Keys, Door Has (3) Point Locking System and Radius Edges, Door is Double Walled (14 ga. Outside and 18 ga. Inside), 4 in. Heavy Duty Weld Hinges with Brass Pins, Galvanized Steel Shelves Adjust On 2-1/2 in. Centers, Twin 2 in. Flame Arrester Vents, 4 in. High Legs Allow Moving Unit with Forklift Truck, Safety Signage In Large Red Letters, Grounding Connector, Self-Close Doors Shut, Index and Latch Automatically As Fusible Link Melts Under Fire Conditions At 165°, Concealed Self Closing Mechanism, Chemical Storage Maximum is Class I and II 60 gal. and Class III 120 gal.
Standards
OSHA, NFPA Code 30, FM, UFC 79
Item
Flammable Liquid Safety Cabinet
Storage Type
Flammable and Hazardous Materials
Key Lock Type
Paddle Latch
Sump Capacity
4.49 gal.
Link Type
Lead Fusible
Width
34 in.

Product Description

Cabinet is easily identified for storage of flammable liquids, with powder-coated yellow finish and safety signage in large red letters. Galvanized steel shelves adjust on 2-1/2" centers. Lockable flush-mounted handle with 2 keys. Welded 18-ga. construction with 14-ga. door front panels for greater protection. 4" high legs have bolt holes to secure to the floor.

NOTE: Self-closing doors are mandatory in some areas. Check local regulations to determine if this applies to your location.
