PALMGREN

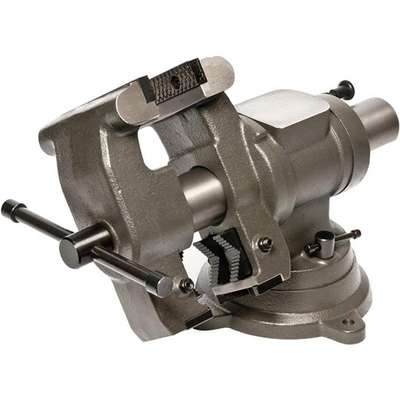

Palmgren Standard Duty Multi-Jaw Rotating Vise, 5" Jaw Width, 4" Max. Opening, 3-1/2" Throat Depth

Hover over image to magnify
Rotating Vise,Swivel,5 In Jaw,
Rotating Vise,Swivel,5 In Jaw,

#917732-2 | Pkg Qty: 1

$529.83 pkg | $529.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bench Vise Base Type
Swivel
Number of Mounting Points
4
Bench Vise Duty Rating
Standard Duty
Overall Height
10-5/8 in.
Brand
PALMGREN
Overall Length
18-3/4 in.
High Visibility
No
Overall Width
10 in.
Item
Multi-Jaw Rotating Vise
Package Quantity
1
Jaw Face
Serrated
Pipe Jaw Included
Yes
Jaw Type
Replaceable
Quick Acting
No
Jaw Width
5 in.
Reversible
No
Material
Cast Iron
Shipping Weight
56.2 lb.
Maximum Opening
4 in.
Swivel Angle
360 deg.
Mfr. Part Number
9629503
Tensile Strength
30000 psi
Mounting Hole Diameter
3/8 in.
Throat Depth
3-1/2 in.
Number of Lock Down Bolts
2
General
Base Type - Vises
Swivel
Max. Opening - Vises
4 in
Body Casting Tensile Strength
30,000 psi
Max. Opening Range
3 in to 5 in
Deep Throat
No
Mounting Hole Dia.
3/8 in
Duty Rating - Vises
Standard Duty
Pipe Capacity - Vises
1/4 in to 3-1/2 in
Features
Hardened Steel Jaw, Rotate Jaw with Manual Locking Pin and Handle - No Wrenches Needed
Product Grouping - Vises
Bench Vises
High-Visibility
No
Quick-Acting
No
Jaw Face - Vises
Serrated
Rotating Angle
360 Degrees
Jaw Width - Vises
5 in
Swivel Angle - Vises
360 Degrees
Jaw Width Range
3 in to 5 in
Throat Depth - Vises
3 1/2 in
Material -Vises
Cast Iron
Throat Depth Range
3 in to 5 in

Product Description

The PALMGREN rotating vise is a versatile bench vise with replaceable, hardened steel jaw for holding flat or round stock. Head and base rotate a full 360° for versatile positioning.
