1/2" Check Valve, Archetype: Single, Inline Piston, MNPT x FNPT

Hover over image to magnify

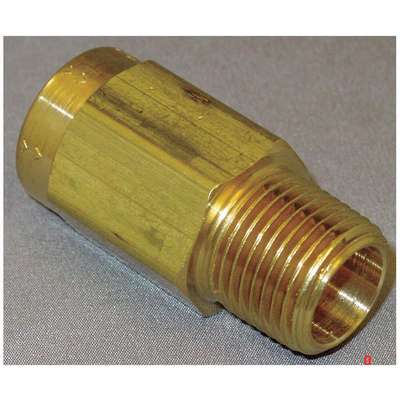

Piston Spring Check Valve,
PI_Asset_1363132
Piston Spring Check Valve,
PI_Asset_1363132

#917721-5 | Pkg Qty: 1

$32.90 pkg | $32.90 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
CHK BRS 810-8F8M-B
Connection Type
FNPT x MNPT
Mounting Position
Vertical or Horizontal
Item
Piston Spring Check Valve
Overall Height
1 in.
Length
1-7/8 in.
Package Quantity
1
Material
Brass
Shipping Weight
.27 lb.
Maximum Temperature
250 deg. F
Width
1 in.
General
Application - Valves
General Purpose
Max. Water Pressure - Valves
500 psi
Body Material - Valves
Brass
Mechanism and Body Design
Inline Piston
Cap to Inlet Center
5 7/16 in
Min. Temp. - Valves
-20 Degrees F
Flow Design
Single
Mounting Orientation
Horizontal, Vertical
Full Flow - Valves
Yes
Pipe or Tube Size
1/2 in
Max. Temp. - Valves
180 Degrees F

Product Description

Ideal for installation in tight spaces, this piston spring check valve can provide backflow protection for a variety of applications. Model has an embedded O-ring that seals on the seat. Pressure in the direction of flow moves the piston and seal off the seat and exposes the cross holes in the piston. Valve is designed to provide a positive seal at very low back pressure or slight vacuum.

Item Barcode
9177215
Piston Spring Check Valve,
 NameItemDescription
Grainger DropshipGrainger Dropship4DHX2Piston Spring Check
UNSPSC CODESUNSPSC CODES40141622
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Piston Spring Check
