SCHNEIDER ELECTRIC

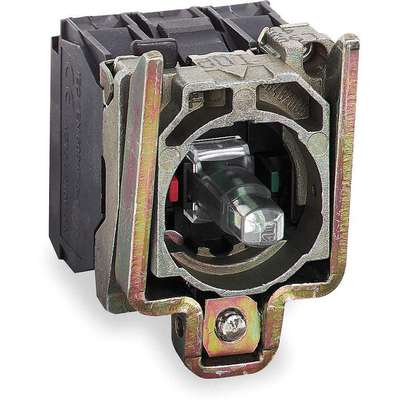

Schneider Electric 1NO/1NC LED Lamp Module and Contact Block, White, For Use With Chrome, ZB4 Series

Hover over image to magnify
Lamp Module And Contact Block,
Lamp Module And Contact Block,

#917718-7 | Pkg Qty: 1

$125.29 pkg | $125.29 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Lamp Voltage
110 to 120 VAC
Color Family
White
Mfr. Part Number
ZB4BW0G15
Contact Form
1NO/1NC
NEMA Contact Rating Designation
A600/Q600
Contact Rating
10 A @ 600 VAC/DC
NEMA Rating
1, 2, 3, 4, 4X, 12, 13
Contact Type
1NO/1NC
Pack Quantity
1
IP Rating
66
Product Size
22 mm
Item
Lamp Module and Contact Block
Shipping Weight
.1 lb.
Lamp Module Type
Full Voltage
Size
22 mm
Lamp Module Voltage
110 to 120 VAC
Terminal Connection
Screw Clamp
Lamp Type
LED
Voltage
120 VAC
General
For Use With
Chrome, ZB4 Series
Standards
UL, CSA, CE

Product Description

22mm Illuminated Push Buttons and LED Modules

  • NEMA rated 1, 2, 3, 4, 4X, 12, and 13 A complete push button requires an operator, mounting base, contact block, and LED module. Replacement LED modules available, see page 385. CSA Certified, and CE Certified. A complete push-button requires an operator, mounting base, contact block, and LED module. Replacement LED modules available, see page 385.
