POLYMERSHAPES

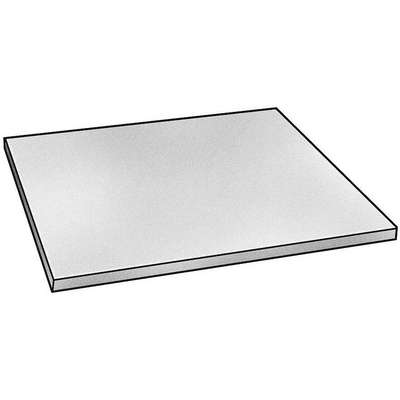

Sheet Stock, Cast Nylon, 12"L x 12"W x 0.250" Thick, 200 Max. Temp. (F), Off-White
Hover over image to magnify
#917658-6 | Pkg Qty: 1
$37.35 pkg | $37.35 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
POLYMERSHAPES
Pack Quantity
1
Item
Sheet Stock
Shipping Weight
1.6 lb.
Length
12 in.
Tensile Strength
12000 psi
Material
Cast Nylon
Thickness
1/4 in.
Mfr. Part Number
1EPF8
Width
12 in.
General
Characteristics
Wear Material
Plastic Hardness Rating
Hard
Corrosion and Chemical Resistance
Fair
Plastic Length
12 in
Friction Coefficient
0.2
Plastic Length Tolerance
±0.250 in
Friction Rating
Very Slippery
Plastic Properties
Wear Material
Grade
Standard
Plastic Thickness
0.25 in
Impact Strength
0.4 ft-lb/in
Plastic Thickness Tolerance
±10%
Impact Strength Rating
Poor
Plastic Width
12 in
Length Tolerance
+/-0.250 in
Plastic Width Tolerance
±0.25 in
Machinability
Good
Shape
Sheets
Maximum Temperature
200 °F
Temperature Range
32° to 200°F
Metal Detectable
No
Thickness Tolerance
±10%
Minimum Temperature
32 °F
Type
Natural Grade
Nominal Size
12 in W x 12 in L
UV Resistant
No
Operating Temp. Range
32° to 200°F
Water Absorption
0.6 %
Plastic Clarity
Opaque
Water Absorption Rating
Poor
Plastic Grouping
Sheet Stock
Wear Factor
Excellent
Plastic Hardness
Rockwell M85
Width Tolerance
+/-0.25 in
Product Description
Food Contact Grade
- Tensile strength: 12,000 psi Continuous use temp.: 200°F Heat deflection temp.: 200°F FDA, USDA, and 3A-Dairy compliant. Cast Nylon Type 6 Sheets and Round Rods
- Strongest and hardest of all nylon 6 grades Note: Additional sizes are available
