EATON

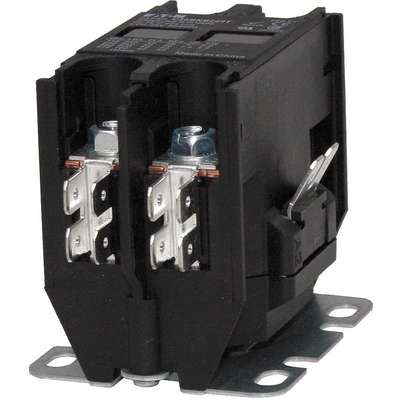

Eaton 120VAC Definite Purpose Contactor; No. of Poles 2, 30 Full Load Amps-Inductive
Hover over image to magnify
#917658-5 | Pkg Qty: 1
$44.93 pkg | $44.93 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Nonreversing
Mfr. Part Number
C25BNB230A
Brand
EATON
Number of Poles
2
Coil Volts
120 VAC
Package Quantity
1
Depth
2.32 in.
Phase
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
Compact
Height
3.19 in.
Shipping Weight
.5 lb.
Hz
50/60
Width
1.97 in.
Item
Definite Purpose Contactor
General
Contactor Type
Definite Purpose
HP @ 1 Phase - 230V
5
Full Load Amps-Inductive
30 A
HP @ 1 Phase - 240V
5 hp
Full Load Amps-Resistive
40 A
Includes
Binding Head Screw with Quick Connect Terminals, Metal Mounting Plate
HP @ 1 Phase - 120V
2 hp
Standards
UL, CSA, CE
Product Description
Eaton® Definite Purpose C25 Contractor Series features a compact, efficient design with a low VA coil and straight-through wiring. Housing design limits dust and other contaminants from magnet structure and reduces noise. Provides a direct replacement to most HVAC contractors. Mounting holes align to 60 amps.
Documents
Eaton Definite Purpose Contactors Technical Specs
Eaton Definite Purpose Contactors Cross Reference Guide
Eaton Definite Purpose Contactors & Starters for the Construction Market Selection Guide
Eaton Definite Purpose Contactors Dimensional Drawing
Eaton Definite Purpose Contactors & Starters Catalog Number Selection Guide
Eaton Definite Purpose Contactors & Starters Product Catalog
Item Barcode
Definit Prpose Cntctr,120VAC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49C073 | Definit Prpose |
 | UNSPSC CODES | 39121529 | |
 | VMRS (ATA) CODES | 053-006-009 | Definit Prpose |
