JOHNSON CONTROLS

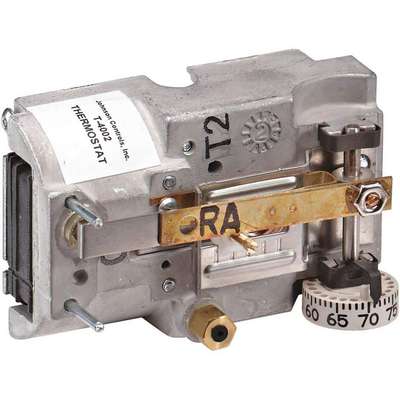

Johnson Controls Pneumatic Thermostat, Heating and Cooling, Single Temperature, 2 Pipe, 55 to 85F
#917615-9Pkg Qty: 1
$295.67 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
JOHNSON CONTROLS
Depth
1-3/4 in.
Height
2-3/32 in.
Item
Pneumatic Thermostat
Maximum Air Pressure
25 psi
Mfr. Part Number
T-4002-202
Mounting Position
Horizontal
Package Quantity
1
Shipping Weight
.3 lb.
Width
3-1/8 in.
Brand
JOHNSON CONTROLS
Mfr. Part Number
T-4002-202
Depth
1-3/4 in.
Mounting Position
Horizontal
Height
2-3/32 in.
Package Quantity
1
Item
Pneumatic Thermostat
Shipping Weight
.3 lb.
Maximum Air Pressure
25 psi
Width
3-1/8 in.
General
Action Type
Reverse Acting
Air Connection Outside Diameter
1/8 in
Air Flow Capacity
400 scim
Air Flow Output
High Volume
Compatible System Type
Pneumatic Valves and Damper Actuators
Control Air Pressure Settings
13 psig (Day)/ 25 psig (Night)
Differential Type
Adjustable
Fitting Connection
Barbed 5/32 in
Key Features
Pneumatic Feedback, Volume Amplifier
Max. Ambient Temp.
135 Degrees F
Maximum Control Temperature
85 Degrees F
Minimum Control Temperature
55 Degrees F
Mounting Direction/Includes Cover
Horizontal, No
Number of Dials
Single
Number of Pipes
2
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Sensor Type
Bi-Metallic Spring
Temp. Control Range
55 Degrees to 85 Degrees F
Temperature Control Range
55 Degrees to 85 Degrees F
Temperature Scale
Celsius/Fahrenheit
Temperature Sensitivity
0.75 to 4 psi/ Degrees F
Temperature Settings
Single Temperature
Thermostat Action
Reverse
Throttling Range
1 to 5 psi
Action Type
Reverse Acting
Mounting Direction/Includes Cover
Horizontal, No
Air Connection Outside Diameter
1/8 in
Number of Dials
Single
Air Flow Capacity
400 scim
Number of Pipes
2
Air Flow Output
High Volume
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Compatible System Type
Pneumatic Valves and Damper Actuators
Sensor Type
Bi-Metallic Spring
Control Air Pressure Settings
13 psig (Day)/ 25 psig (Night)
Temp. Control Range
55 Degrees to 85 Degrees F
Differential Type
Adjustable
Temperature Control Range
55 Degrees to 85 Degrees F
Fitting Connection
Barbed 5/32 in
Temperature Scale
Celsius/Fahrenheit
Key Features
Pneumatic Feedback, Volume Amplifier
Temperature Sensitivity
0.75 to 4 psi/ Degrees F
Max. Ambient Temp.
135 Degrees F
Temperature Settings
Single Temperature
Maximum Control Temperature
85 Degrees F
Thermostat Action
Reverse
Minimum Control Temperature
55 Degrees F
Throttling Range
1 to 5 psi
Product Description
These thermostats have a single setpoint to control heating and cooling systems at one temperature for basic temperature control in older schools, hospitals, and commercial buildings. Pneumatic thermostats regulate the temperature using compressed air for power.
