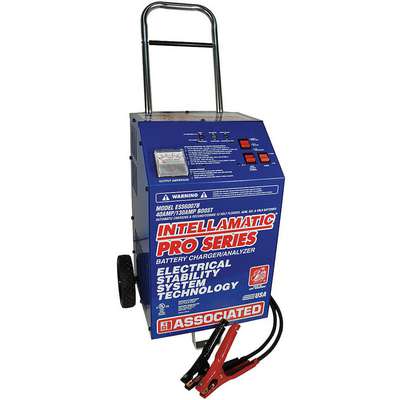

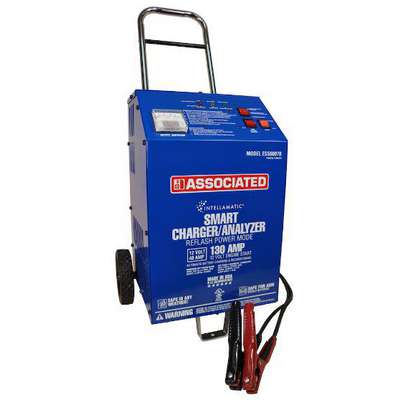

Battery Charger/Starter, 40A, 120VAC

Battery Charger/Starter, 40A, 120VAC

#917524-1 | Pkg Qty: 1

$715.88 pkg | $715.88 ea
Item Number 917524-1
Scanner Description Battery Charger/Starter,40A,
Inventory Status Drop Ship Item
Weight 40.8 lb
Brand ASSOCIATED EQUIP

Technical Specifications

AC Cord
6 ft.
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
AC Cord Length
6 ft.
Includes
Convenient Clamp Bar for Easy and Safe Storage of Clamps When not in Use
Amps
40A
Indoor/Outdoor
Indoor/Outdoor
Application
Battery Charging and Maintence
Input
120VAC
Automatic/Manual
Automatic
Input Voltage
120VAC
Average Charge Time 12 V High
Variable
Item
Battery Charger and Starter
Average Charge Time 12 V Low
Variable
Lead Size
4 AWG
Average Charge Time 6V High
1/2 to 2 hr.
Maintaining Amps @ Voltage
45A @ 12V
Boost Amps @ Voltage
130A @ 12V
Manual/Automatic
Smart
Brand
ASSOCIATED EQUIP
Material
Steel
CEC Compliant
CEC Compliant
Mfr. Part Number
ESS6007B
Cable Gauge
4 AWG
Overall Depth
17 in.
Cable Length
6 ft.
Overall Height
30 in.
Charge Time
2 hr.
Overall Width
16 in.
Charge Time 12 V
Variable
Pack Quantity
1
Charge Time 6 V
1/2 to 2 hr.
Peak Amps
130A
Charge Type
Smart
Portable
Yes
Charger Function
Boosting, Charging, Maintaining
Standards
UL, cUL Listed, X - ANALYZER
Charger Style
Wheeled
Test Feature
Yes
Charging Amps @ Voltage
45A @ 12V
Timer
Microprocessor Controlled
Cold Crank Amps
130A
UL Rated Amps 12 V
40A
Cranking Amps
130A
UL Rated Amps Start
130A
For Battery Voltage
6, 12
Voltage Rating
120VAC
For Use with Battery Type
AGM, Deep Cycle, Gel, Lead Acid

Product Description

Battery Charger and Starter, Charger Style Wheeled, For Battery Voltage 12, For Use With Battery Type AGM, Deep Cycle, Gel, Lead Acid, Charger Function Boosting, Charging, Maintaining, Automatic, Charge Type Smart, Boost Amps @ Voltage 130A @ 12V, Charging Amps @ Voltage 45A @ 12V, Maintaining Amps @ Voltage 45A @ 12V, AC Cord Length 6 ft, Input Voltage 120V AC, Overall Width 16 in, Overall Height 30 in, Overall Depth 17 in, Cable Gauge 4 AWG, Cable Length 6 ft, Test Feature Yes

Item Barcode
9175241
  Name Item Description
Grainger Dropship Grainger Dropship 29RV91 Battery Charger/
UNSPSC CODES UNSPSC CODES 26111704
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Battery Charger/
