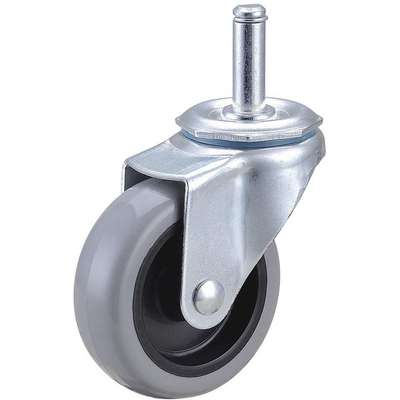

3" Light-Duty Swivel Stem Caster, 125 lb. Load Rating

3" Light-Duty Swivel Stem Caster, 125 lb. Load Rating

#917474 | Pkg Qty: 1

$16.70 pkg | $16.70 ea
Item Number 917474
Scanner Description Swivel Stem Caster,3 In,125 Lb,
Inventory Status Drop Ship Item
Weight 0.7 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
Fixtures, Institutional Equipment, Medical Equipment, Equipment Carts, Furniture
Load Rating
125 lb.
Brand
APPROVED SUPPLIER
Mfr. Part Number
F1IX03041S-S21
Caster Brake Included
No
Mounting Type
3
Caster Core Material
Polyolefin
Non-Marking
Yes
Caster Group
Swivel Caster
Number of Wheels
1
Caster Load Rating Range
Light Duty
Overall Height
3-5/8 in.
Caster Raceway
Double Ball
Pack Quantity
1
Caster Stem Type
Friction Ring
Replacement Wheel
26Y331
Caster Sub-Type
Swivel
Standards
ANSI/ICWM
Caster Temperature Range
-40 Degrees to 175 Degrees F
Stem Diameter
7/16 in.
Caster Temperature Range Available
Yes
Stem Length
1-3/8 in.
Caster Wheel Bearings
Plain
Stem Type
Friction Ring
Caster Wheel/Tread Material
Polyurethane
Wheel Bearings
Plain
Core Color
Black
Wheel Color
Gray
Core Material
Polyolefin
Wheel Diameter
3 in.
Frame Finish
Zinc Plated
Wheel Material
Polyurethane
Item
Stem Caster
Wheel Width
1 in.

Product Description

General purpose friction-ring stem casters are used on carts, furniture, storage cabinets, storage bins, display stands, retail fixtures, and other equipment in a wide variety of institutional and industrial settings. The casters have double ball swivel bearings that allow them to swivel smoothly.

Friction-ring stem casters each have a stem that presses into an appropriately sized hole or socket in tubes, pipes, wood, or compatible brackets on furniture or equipment. A spring ring at the end of the stem expands to hold the caster in place once it's installed in the hole or socket. Also known as grip-ring stem casters, these casters are used on furniture or equipment such as office chairs, tables, and medical equipment to allow them to roll as they're being moved or repositioned. Friction-ring stem casters require few or no tools for installation, making them well suited for applications where casters need to be replaced frequently. These swivel casters can rotate 360°, allowing equipment to change directions while rolling.

Item Barcode
9174740
  Name Item Description
Grainger Dropship Grainger Dropship 32J799 Swivel Stem Caster,3 In,
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-003 Swivel Stem Caster,3 In,
