RADNOR

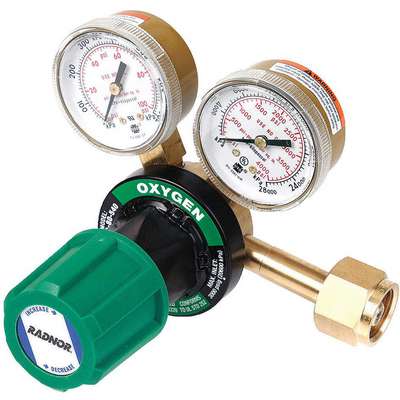

Radnor 250-150-540 Series Gas Regulator, 4 to 80 psi, Oxygen
Hover over image to magnify
#917471-2 | Pkg Qty: 1
$235.01 pkg | $235.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Mfr. Part Number
RAD64003031
Brand
RADNOR
Outlet Connection
9/16 in.-18 M RH
CGA Connection Inlet
CGA540
Package Quantity
1
Cylinder Gas
Oxygen
Regulator Capacity
Medium Duty
Delivery Pressure Range
4 to 80 psi
Regulator Supply Type
Cylinder
Gas Service
Oxygen
Series
250-150-540
Gauge Size
2 in.
Shipping Weight
3.03 lb.
Inlet Connection
CGA-540
Stages
Single Stage
Item
Gas Regulator
Type
Single Stage, Medium Duty
General
CGA Number
CGA 540
Number of Stages
Single Stage
Compatible Gas Type
Oxygen
Outlet Connection Gender
Male
Gauge Diameter
2 in
Outlet Connection Size
9/16"-18
Inlet Connection Gender
Male
Outlet Connection Type
UNF
Inlet Connection Size
0.908"-14
Outlet Pressure (Maximum)
150 psig
Inlet Connection Type
NGO
Outlet Thread Direction
Right Hand
Inlet Thread Direction
Right Hand
Regulator Application
General Purpose
Mounting Type
Cylinder
Product Description
This single stage regulator is suitable for use with oxygen in medium duty applications. It features a stem-type seat mechanism, sintered inlet filter, forged brass body, and zinc die-cast housing cap.
