RAYCHEM

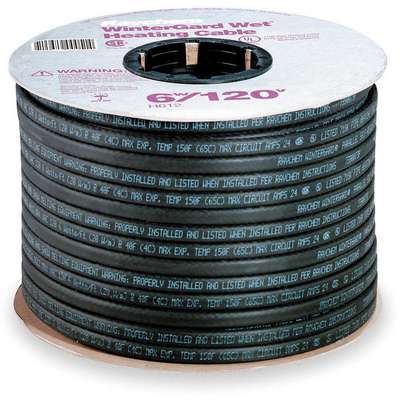

Raychem 250 ft. Self Regulating Heating Cable, Wet or Dry, Max. Circuit Length 200 ft., 120VAC

Hover over image to magnify
Self Regulating Heat Cable,250
PI_Asset_951244
Self Regulating Heat Cable,250
PI_Asset_951244

#917468 | Pkg Qty: 1

$2,037.17 pkg | $2,037.17 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
RAYCHEM
Package Quantity
1
Cable Length
250 ft.
Shipping Weight
20 lb.
Item
Self Regulating Heating Cable
Voltage
120 VAC
Mfr. Part Number
734921-000
General
Amps per Cable @ 40F
0.05 A
Max. Operating Temp.
150 Degrees F
Amps per Foot @ 40F
0.05 A
Min. Operating Temp.
-40 Degrees F
Cable Cover Material
Rubberized Polymer
Nominal Voltage - HVAC
120V AC
Cable Material
Conductive Carbon
Standards
CSA Certified
For Use Indoors/Outdoors
Indoor/Outdoor
Wattage Output
6 W
For Use With
Roofs, Gutters, Downspouts, Roof Drains, Marine, Lighter Plastic or Metal Pipes Up to 8 in. Dia.
Watts per Cable @ 40F
6 W
Includes
Cable Only
Watts per Foot @ 40F
6 W
Max. Circuit Length
200 ft

Product Description

Cut-to-length electric heating cables are packaged in bulk, so users can cut as much as needed for each job. These cables require installation accessories. They protect pipes, roofs, and gutter systems against damage from freezing or ice buildup.
