STANLEY

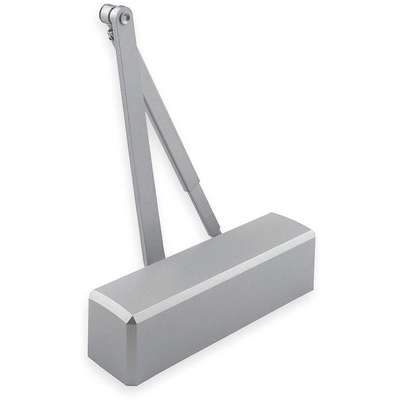

Stanley QDC 300 Series, Standard Duty, Non Hold Open Door Closer; 3-3/32" Wall Projection
Hover over image to magnify
#917456 | Pkg Qty: 1
$149.26 pkg | $149.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ADA Compliance
Yes
Housing Height
2-5/8 in.
Arm Material
Carbon Steel
Housing Length
9-13/16 in.
Arm Type
Tri Pack
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Interior/Exterior
Interior and Exterior
Brand
STANLEY
Item
Door Closer
Closer Type
Non Hold Open
Ligature Resistant
No
Color Family
Silver
Mfr. Part Number
QDC311NC689
Door Opening Width
120 deg.
Mounting Style
Parallel, Regular, Top Frame
Duty Rating
Standard Duty
Pack Quantity
1
Finish
Painted
Projection
3-3/32 in.
Hand Orientation
Non-Handed
Series
Stanley QDC 300
Hardware Included
Yes
Shipping Weight
5.95 lb.
Housing Depth
3-3/16 in.
Spring Size
Adjustable 1 to 6
General
ADA Compliant
Yes
Includes
Hex Nuts, Self Tapping Screws
Closer Mounting Style
Parallel, Regular, Top Frame
Interior Door Width
Up to 58 in
Closer Performance
Standard Duty
Max. Door Opening
120°
Closer Series
Stanley QDC 300
Power Rating
Door Closer 1-6
Closing Operation Mode
Hydraulic
Projection from Wall
3 3/32 in
Exterior Door Width
Up to 54 in
Standards
ANSI A156.4 Grade 1, UL and c
Product Description
Hydraulic door closer features delayed action and back check. Includes wood and machine screws, sex nuts, and self-tapping screws. For interior doors to 4-1/2 ft. wide and exterior doors to 4-ft. wide. Door closer cover (2WHL8) not included, but available separately.
Expertly Selected Product Pairings
Item Barcode
Door Closer,Non Hold Open,L 9
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2WHF9 | Door Closer, Non Hold |
 | UNSPSC CODES | 30171514 | |
 | VMRS (ATA) CODES | 053-006-009 | Door Closer, Non Hold |
