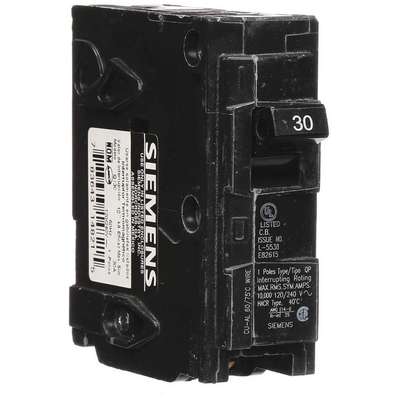

Plug In Circuit Breaker, Q, Number of Poles 1, 30 Amps, 120VAC, Standard

Plug In Circuit Breaker, Q, Number of Poles 1, 30 Amps, 120VAC, Standard
Plug In Circuit Breaker,30A,1P,
PI_Asset_948288
PI_Asset_948289
PI_Asset_948290
PI_Asset_948291
PI_Asset_948292

#917378-8 | Pkg Qty: 1

$20.10 pkg | $20.10 ea
Item Number 917378-8
Scanner Description Plug In Circuit Breaker,30A,1P,
Inventory Status Drop Ship Item
Weight 0.25 lb
Brand SIEMENS

Technical Specifications

AC Voltage Rating
120VAC
Maximum Wire Size
6 AWG
Air @ 120 VAC
10kA
Mfr. Part Number
Q130
Amperage
30
Minimum Wire Size
14 AWG
Amps
30
Number of Poles
1
Brand
SIEMENS
Pack Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
48VDC
Phase
1
Depth
2.38 in.
Phase Connection
Any
For Use With
Siemens Load Centers
Series
Q
Frame Size
125A/QP
Standards
UL Listed, CSA Certified
High Amp Trip Setting
30
Terminal Connection
Lug
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Plug In Circuit Breaker
Voltage
120 VAC
Length
2.88 in.
Width
1 in.
Maximum Air Rating
10 kA

Product Description

These Q series miniature circuit breakers plug into place in panelboards and EQ load centers and don't require bolting, so they're easier to install than bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
