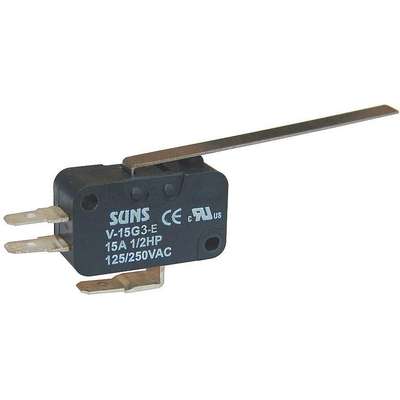

15A @ 240V Hinge, Lever, Long Miniature Snap Action Switch; Series V

Item Number 917364-2
Scanner Description Mini Swch,15A,1 No,1 Nc,Lng
Weight 0.02 lb
Brand APPROVED SUPPLIER
Pkg Qty: 1
$3.12 pkg | $3.12 ea

Add to List

Technical Specifications

AC Contact Rating - Snap Action Switch 15A @ 240V   Max. Pretravel 0.354 in.
Actuator Length 2.01 in.   Mfg Part Number 5JED0
Actuator Type - Snap Action Switch Hinge, Lever, Long   Mounting Dimension 0.87 in. Centers
Amperage - Electrical Supplies 15   Mounting Dimension - Snap Action Switch 0.87 in. Centers
Amps 15   Number of Circuits - Snap Action Switch 1
Basic Actuator Type - Snap Action Switch Lever   Operating Force 3.11 oz.
Brand APPROVED SUPPLIER   Operating Force (Oz.) 3.11
Contact Form SPDT   Operating Temp Range -13° to 185°F
Contact Form- Switches SPDT   Operating Temp. Range (F) -13 to 185
Contact Type 1 NO, 1 NC   Over Travel 0.118 in.
Current Rating 15A   Pack Quantity 1
Depth 0.406 in.   Release Force 0.98 oz.
Depth - Snap Action Switch 0.41 in.   Release Force (Oz.) 0.98
Differential Travel 0.079 in.   Series V
Differential Travel (In.) 0.079   Snap Action Switch Type Miniature Snap Action Switch
Electrical Connection - Snap Action Switch 3/16 in. Quick Connect   Standards UL, CSA, CE
Height 5/8 in.   Type Miniature, V Series
Height - Snap Action Switch 0.62 in.   Type of Actuator Long Hinge Lever
Housing Material Thermoplastic Case and Cover   Voltage (V) 125<lt/>SNF/<gt/>250VAC
Item Miniature Snap Action Switch   Voltage Rating 125/250VAC
Length 1.09 in.   Watertight - Snap Action Switch No
Length (In.) 1.09   Width - Snap Action Switch 1.09 in.
Lever Actuator Length - Snap Action Switch 2.01 in.

Product Description

  • Item # 5JED0
  • Mfr. Model # V-15G3-E
  • UNSPSC # 39121505
  • Catalog Page # 362
  • Shipping Weight 0.02 lbs.
Country of Origin China Country of Origin is subject to change.

Item Barcode
9173642
  Name Item Description
Grainger Dropship Grainger Dropship 5JED0
UNSPSC CODES UNSPSC CODES 39121505
VMRS (ATA) CODES VMRS (ATA) CODES 034-004-081 Mini Swch, 15A,1 NO,1
