ASHCROFT

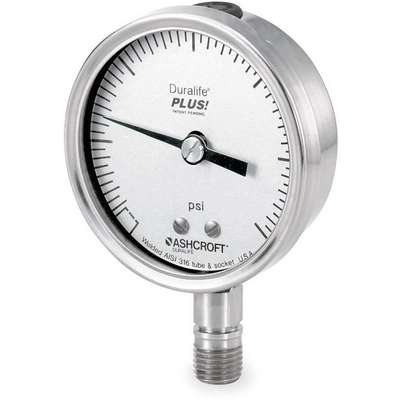

Industrial Pressure Gauge: 0 to 200 psi, 2 1/2" Dial, Dry Case Vibration-Dampened, Bottom
#917330-9Pkg Qty: 1
$144.13 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bezel Material
304 Stainless Steel
Brand
ASHCROFT
Calibration Certificate Included
No
Gauge Accuracy
±1.0%
Gauge Connection Location
Bottom
Gauge Connection Size
1/4 in.
Gauge Nominal Dial Size
2-1/2 in.
Item
Industrial Pressure Gauge
Liquid Filled
No
Mfr. Part Number
251009SW02LXLL 200#
Mfr. Warranty Length
5 yr.
Mounting Type
Stem-Mount
Non-Sparking
No
Operating Temperature Range
-40 deg. F to 150 deg. F
Package Quantity
1
Pressure Range
0 to 200
Series
1009
Shipping Weight
.35 lb.
Bezel Material
304 Stainless Steel
Mfr. Part Number
251009SW02LXLL 200#
Brand
ASHCROFT
Mfr. Warranty Length
5 yr.
Calibration Certificate Included
No
Mounting Type
Stem-Mount
Gauge Accuracy
±1.0%
Non-Sparking
No
Gauge Connection Location
Bottom
Operating Temperature Range
-40 deg. F to 150 deg. F
Gauge Connection Size
1/4 in.
Package Quantity
1
Gauge Nominal Dial Size
2-1/2 in.
Pressure Range
0 to 200
Item
Industrial Pressure Gauge
Series
1009
Liquid Filled
No
Shipping Weight
.35 lb.
General
Accuracy Grade
ASME B40.100 Grade 1A
Accuracy Scale
Full Scale
Bezel Mounting Type
Bayonet
Case Construction
Welded Joint
Case Depth
1.25 in
Case Diameter
2.75 in
Compatible Process Media
Deionized Water
Dial Face Material
Aluminum
Dry Dampening Feature
PLUS! Performance
Gauge Accuracy Grade
Grade 1A - Industrial
Gauge Application
Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing
Gauge Case Color
Silver
Gauge Case Material
304 Stainless Steel
Gauge Connection Type
MNPT
Gauge Lens Material
Polycarbonate
Gauge Panel Mountable
No
Gauge Primary Range Units
psi
Gauge Sensor Material
316L Stainless Steel
Gauge Socket Material
316L Stainless Steel
Gauge Wetted Parts
Stainless Steel
Hazardous Location Rating
Not Rated
IP/NEMA Rating
IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed)
Includes Vent Plug
Yes
Lens Material - Gauge
Plastic
Manufacturer Warranty Length
5 yr
Pointer Material
Aluminum
Pressure Range Type
Pressure
Pressure and Vacuum Gauge Type
Pressure Gauge
Primary Scale Minor Graduations
2
Primary Scale Numeric Increments
20
Process Connection
1/4 in NPT Male
Process Connection Gender
Male
Process Connection Type
NPT
Removable Bezel
Yes
Scale Type
Single
Sensor Type
Bourdon Tube
Standards
ASME, CRN, RoHS
Accuracy Grade
ASME B40.100 Grade 1A
Gauge Wetted Parts
Stainless Steel
Accuracy Scale
Full Scale
Hazardous Location Rating
Not Rated
Bezel Mounting Type
Bayonet
IP/NEMA Rating
IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed)
Case Construction
Welded Joint
Includes Vent Plug
Yes
Case Depth
1.25 in
Lens Material - Gauge
Plastic
Case Diameter
2.75 in
Manufacturer Warranty Length
5 yr
Compatible Process Media
Deionized Water
Pointer Material
Aluminum
Dial Face Material
Aluminum
Pressure Range Type
Pressure
Dry Dampening Feature
PLUS! Performance
Pressure and Vacuum Gauge Type
Pressure Gauge
Gauge Accuracy Grade
Grade 1A - Industrial
Primary Scale Minor Graduations
2
Gauge Application
Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing
Primary Scale Numeric Increments
20
Gauge Case Color
Silver
Process Connection
1/4 in NPT Male
Gauge Case Material
304 Stainless Steel
Process Connection Gender
Male
Gauge Connection Type
MNPT
Process Connection Type
NPT
Gauge Lens Material
Polycarbonate
Removable Bezel
Yes
Gauge Panel Mountable
No
Scale Type
Single
Gauge Primary Range Units
psi
Sensor Type
Bourdon Tube
Gauge Sensor Material
316L Stainless Steel
Standards
ASME, CRN, RoHS
Gauge Socket Material
316L Stainless Steel
Product Description
Pressure Gauge, Test, 2 1/2 in, Basic Gauge Case Material Stainless Steel, Basic Gauge Wetted Parts Stainless Steel, 1/4 in, MNPT, Gauge Connection Location Bottom, 0 to 200, psi, +/-1.00 Percent, Gauge Panel Mountable No, Liquid Filled No, Gauge Primary Range Smallest Graduation 2, Gauge Case Material 304 Stainless Steel, Gauge Primary Range Numbered Graduations 20, Gauge Case Color Stainless Steel, Calibration Certificate Included No
