PARKER

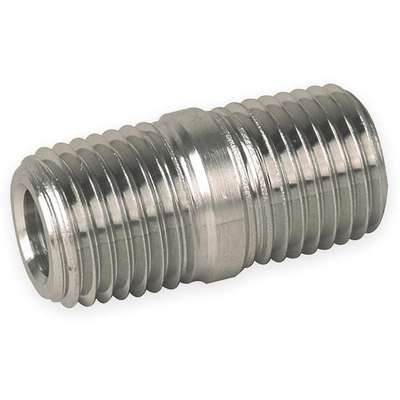

Nipple: 316 Stainless Steel, 1/4 in Nominal Pipe Size, 1 1/8 in Overall Lg, Threaded on Both Ends

Hover over image to magnify
Close Nipple,1/4 In.,Threaded,
Close Nipple,1/4 In.,Threaded,

#917295-3 | Pkg Qty: 1

$18.54 pkg | $18.54 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
316 Stainless Steel
Maximum Pressure
7500 psi @ 100°F
Brand
PARKER
Mfr. Part Number
4-4 MCN-SS
Connection Type
MNPT x MNPT
Package Quantity
1
Fitting Thread Size
1/4-18
Pipe Size
1/4 in.
Item
Close Pipe Nipple
Shipping Weight
.05 lb.
Length
1/4 in.
Temperature Range (Deg. F)
-425 to 1200 deg. F
General
Fitting Compatibility
Schedule 80
Side A Thread Type
NPT
Material Grade
316
Side B Connection Type
Threaded
Metal Detectable
Yes
Side B Gender
Male
Metal Pipe Construction
Seamless
Side B Thread Type
NPT
Nominal Pipe Size
1/4 in
Standards
ANSI B31.1, ANSI B31.3, ANSI B1.20.1
Pressure Level
Medium Pressure (300-999 psi)
Thread Configuration
Threaded on Both Ends
Side A Connection Type
Threaded
Threading
NPT
Side A Gender
Male

Product Description

316 Stainless Steel Instrumentation Pipe Fittings

  • Temp. range: -425° to 1200°F Machined to an exceptional tolerance level with rolled threads for increased strength. 316 stainless steel has a higher nickel content, as well as molybdenum for better corrosion resistance. NPT connections. Use with water, steam, natural gas, hydraulic oil, and cryogenic gases. Meet ANSI B31.1, ANSI B31.3, and ANSI B1.20.1.
