DAYTON

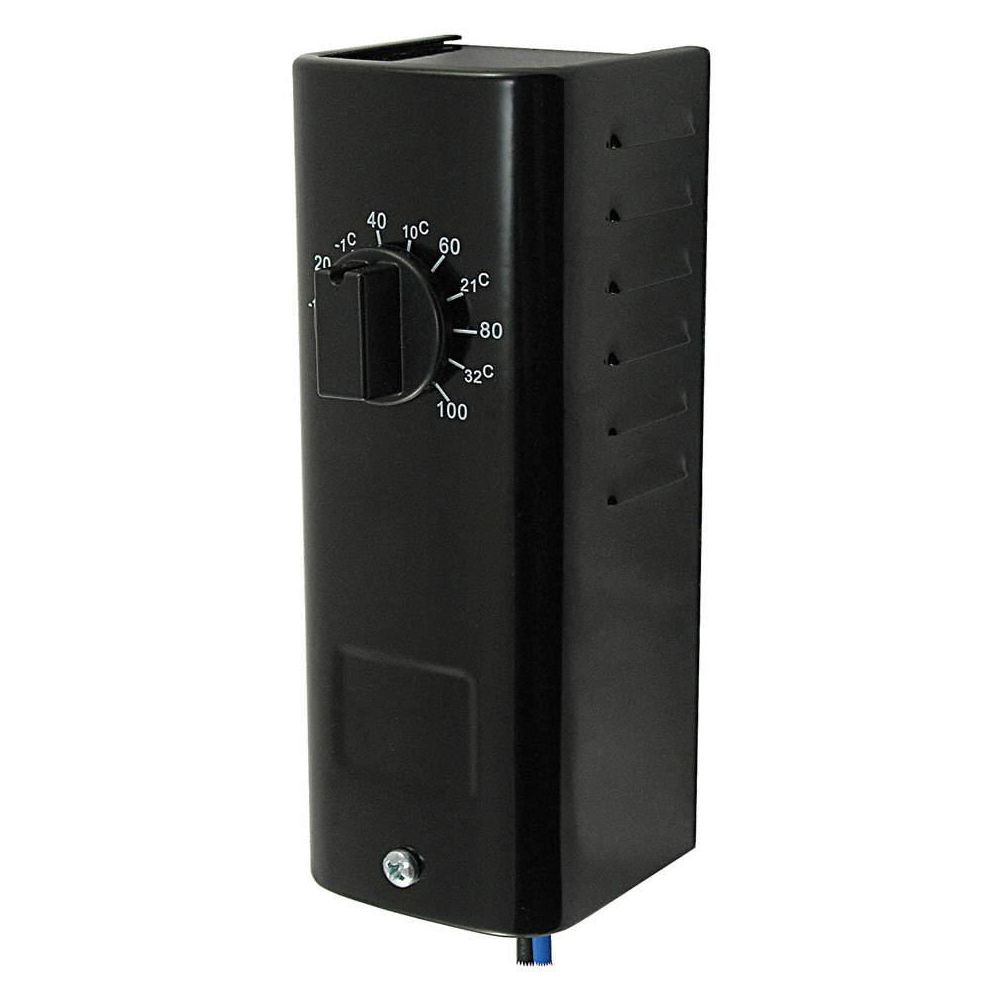

Dayton Line Volt Mechanical Tstat for Heating Only, 120 to 277VAC

Hover over image to magnify
Line Volt Mechanical Tstat,120
PI_Asset_1370457
Line Volt Mechanical Tstat,120
PI_Asset_1370457

#917291-3 | Pkg Qty: 1

$50.13 pkg | $50.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
CSA
Item
Line Voltage Mechanical Thermostat
Brand
DAYTON
Mfr. Part Number
2E815
Color Family
Gray
Package Quantity
1
Depth
2-63/100 in.
Shipping Weight
.9 lb.
Differential
6 to 8°F
Switch Type
SPST
Display
Analog
Voltage
120 to 277 VAC
Height
5-1/2 in.
Width
2-13/100 in.
General
Compatible System Type
Gas or Forced Air Furnaces
Maximum Control Temperature
100 Degrees F
Contact Rating Resistive @ 120V
22 A
Minimum Control Temperature
-10 Degrees F
Contact Rating Resistive @ 240V
22 A
Number of Heating Stages
1
Differential Type
Adjustable
Number of Switches
1
Enclosure Finish
Powder Coated
Sensor Type
Bi-Metal
Enclosure Material
Steel
Switch Action
Open on Rise
Enclosure NEMA Rating
NEMA 1
Switch Type/Action
SPST, Open on Rise
Features
Commercial
Temperature Control Range
-10 Degrees to 100 Degrees F
For Use With
Agricultural, Commercial and Industrial Applications
Temperature Differential
2 Degrees F
Full Load Amps @ 120V AC
15 A
Temperature Scale
Celsius, Fahrenheit
Includes
Contacts that Open on Temperature Rise for Heating Applications
Thermostat Type
Line Voltage
Inductive Amps @ 120V
13.8 A

Product Description

These temperature controls are suitable for indoor settings such as livestock barns, garages, or workshops. Their enclosures meet NEMA 1 for use indoors. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These controls have an air-coil or bimetal sensor that monitors and regulates the ambient air temperature. The sensing element is not affected by changes in barometric pressure or cross-ambient conditions.
