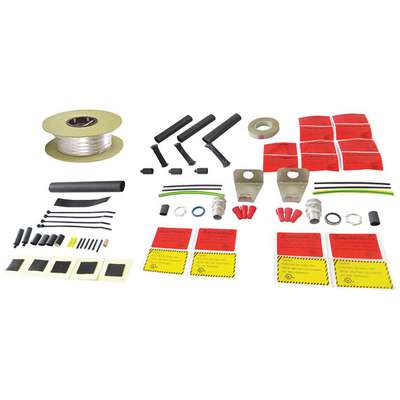

100 ft. Self Regulating Heating Cable Kit, Dry, Max. Circuit Length 250 ft., 120VAC
Hover over image to magnify
#917263-5 | Pkg Qty: 1
$498.90 pkg | $498.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Package Quantity
1
Cable Length
100 ft.
Shipping Weight
8.95 lb.
Item
Self Regulating Heating Cable Kit
Voltage
120 VAC
Mfr. Part Number
13R074
General
Amps per Cable @ 40F
2.5 A
Max. Circuit Length
250 ft
Amps per Foot @ 40F
0.03 A
Max. Operating Temp.
150 Degrees F
Cable Cover Material
Thermoplastic Elastomer
Min. Operating Temp.
-40 Degrees F
Cable Material
Copper
Nominal Voltage - HVAC
120V AC
Features
Automatically Adjust Heat Output
Standards
UL515,UL1588,IEEE515.IEEE515.1 and CAN/CSA-C22.2 No. 130-03
For Use Indoors/Outdoors
Indoor Only
Wattage Output
3 W
For Use With
Water Pipe System, Plastic or Metal Pipes Up to 8 in. Dia.
Watts per Cable @ 40F
400 W
Includes
(1) 13R090 Splice/Tee Kit, (1) 13R091 Roll of Tape/Labels, (1) Roll of Cable, (2) 13R088 Power Connection Kits
Watts per Foot @ 40F
4 W
Product Description
Cut-to-length electric heating cable kits include a roll of cable, a power connection kit, a splice and tee kit, and a roll of application tape. Users can cut the cable to length as needed for each job. These heating cables protect pipes, roofs, and gutter systems against damage from freezing or ice buildup.
